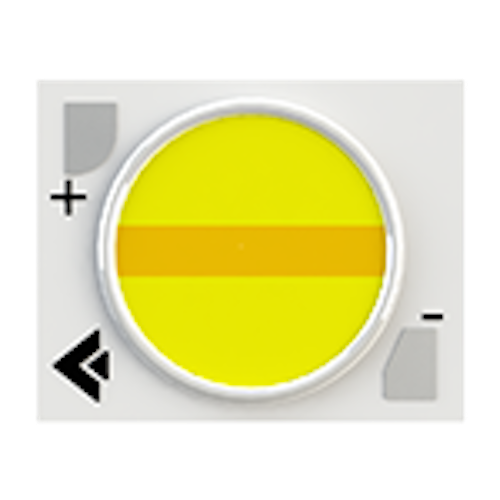

LUXTECH's 10 mm Warm Dim COB - Mimics Halogen Dimming on Any Compatible 0-10V Driver, 3000-1800K and 90+ CRI
LUXTECH's 10 mm Warm Dim COB - Mimics Halogen Dimming on Any Compatible 0-10V Driver, 3000-1800K and 90+ CRI
COB Warm Dim matches the dimming curve of halogen lighting, getting warmer as brightness decreases. The innovative LED design enables high performance and efficacy without the cost and complexity of alternatives. It works with standard 0-10V dimmable drivers and eliminates the need for complex controls.

Our chip has a 10 mm light emitting surface, with dim to warm from 3000-1800K. COB Warm Dim maintains 90+ CRI throughout the dimming range. We use 3-Step MacAdam binning to ensure color consistency.

FEATURES
5-Year Warranty
Chip-on-Board LED
Mimics Halogen Dimming on Any Compatible Driver
Works With Standard 0-10V, ELV, and TRIAC Drivers
CCT Range: 3000 K - 1800 K
CRI: 90+ Throughout Entire Dimming Range
3-Step MacAdam Binning
High Efficacy: 98 lm/W

GENERAL SPECIFICATIONS
Forward Voltage: 36 V
Max Voltage: 36.5 V
Power: 12.5 W
Nominal Current: 350 mA
Max Current: 385 mA
Luminous Flux: 1220 lm (nominal)
Light Emitting Surface: 10 mm Diameter
Board Size: 12 mm x 15 mm
L70: 45,000 Hours (Calculated, 105 °C, 350 mA)
