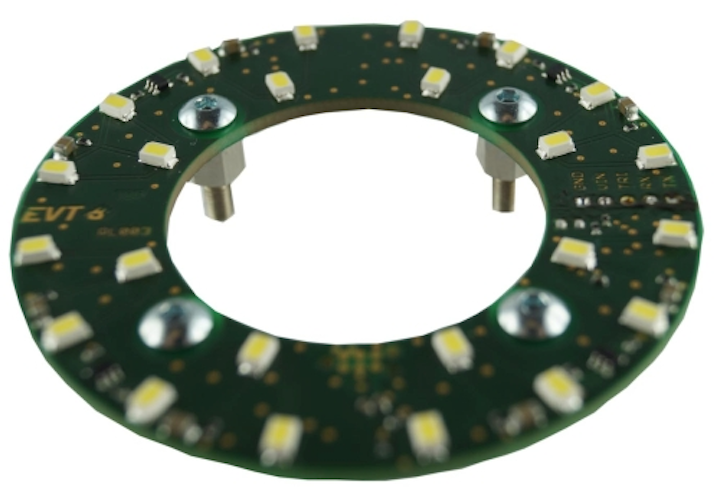

The ring light V3 by EVT is a freely configurable LED illumination source for industrial machine-vision applications with RS-232 connection.
The V3 LED ringlight can display any kind of lighting pattern and can be controlled via a trigger input or optionally via RS-232 interface.
Once programmed, patterns - called "frames" - can be saved and the patterns are automatically reloaded after each restart.
The LED ringlight is equipped with an RS-232 or TTL UART interface and power supply of +5V or 12-24V.
Additionally, the LED ringlight is divided into eight segments each with three LEDs. Each of these segments can be controlled individually and dimmed in its intensity.
Klara Steinschneider - EVT Eye Vision Technology GmbH
