TECH NOTES: ThermaLynk LED packaging technology from Lynk Labs moves goalposts for LED packaging and assembly

Lynk Labs' latest patented technology breakthrough ThermaLynk continues to push the boundaries of LED application efficiency from die level to luminaire.

Content Dam Leds En Articles Print Volume 3 Issue 12 Features Tech Notes Thermalynk Led Packaging Technology From Lynk Labs Moves Goalposts For Led Packaging And Leftcolumn Article Thumbnailimage File
Lynkintro

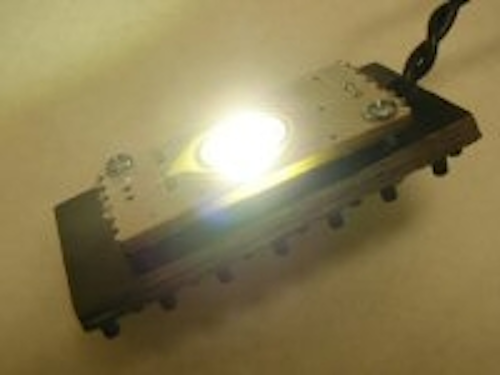

AC LED module on CoolPoly carrier
Known primarily for its AC LED system solutions, Lynk Labs (Elgin, IL) introduced ThermaLynk - a new LED packaging technology - at the Intertech LEDs 2006 conference late October in San Diego. According to Mike Miskin, president/CEO of Lynk Labs, "ThermaLynk technology will fundamentally change how LEDs are packaged and integrated into end products by reducing cost and design complexity, and improving operating efficiency at the packaged die level on up to the luminaire."

ThermaLynk offers an integrated thermal solution for LED packaging that was developed by Lynk Labs in collaboration with Cool Polymers Inc. of Warwick RI. Lynk Labs initially looked at how CoolPoly® thermal conductive material was being utilized as a replacement for metal core PCBs in LED assemblies. "We use several methods to form circuits on our polymer substrates, providing a moldable replacement for metal core PCBs,” says Gary Arnold of Cool Polymers.

Lynk Labs realized the CoolPoly® materials could offer significant advantages if taken down to the LED die level. The result is 2 new patented methods of packaging LEDs including LED packages made of thermal conductive plastics and what Lynk Labs refers to as "Chip On Luminaire" (COL™). In the COL concept, LED die are placed directly on a ThermaLynk luminaire molded into any form of end product such as an automotive tail light, traffic signal or backlight for displays.

Lynkdec06fig1
Figure 1
Common LED manufacturing processes today require multiple assembly steps and different materials as shown in the example in Figure 1.

The die is adhered to a substrate or heat sink slug that is then typically encapsulated in a plastic that is not thermally conductive. This essentially seals in the heat around the package, reducing thermal conduction paths to only the package bottom or lead frames. The lead frames are typically insert-molded into the plastics, and phosphors and/or a lens are applied.

Lynkdec06fig2
Figure 2
In many cases heat only has one path out of the LED, via the bottom of the LED package to the PCB through the heat sink slug or lead frames as shown in Figure 2. The heat therefore, is essentially sealed in the rest of the package, making it more difficult to thermally manage.
Lynkdec06fig3
Figure 3

Figure 3 illustrates the ThermaLynk technology advantage, which provides a way to integrate several of the LED package materials used today into a single, moldable structure. Crucially, this has heat transfer properties equal to aluminum, which is the lowest cost and most readily formable material presently used in LED module construction. ThermaLynk technology advantages can be leveraged into both high power and low power LED packages.

Lynkdec06fig4
Figure 4
Since ThermaLynk reduces the number of thermal interfaces and different material types needed to fabricate an LED package, thermal resistance in the package is reduced increasing the overall efficiency of the LED package. thereby increasing efficiency of the package. The result (see Figure 4, is an LED package structure molded with thermal conductive plastic into any size and shape that dissipates heat more uniformly and in almost every direction. Electrically conductive materials can be used to replace lead frames by coating molded lead frames formed within the LED package.

Lynkdec06fig5
Figure 5

For high power packages mounted to ceramic or metal core PCB, it is necessary to add a finned aluminum heat sink and/or integrate the assembly into a finned luminaire. A typical LED package assembly today may look something like the one shown in Figure 5.

ThermaLynk technology enables aesthetic heat sinking to be molded right into the package design thereby increasing the heat transfer surface area around the LED die where all the heat is produced. Compared to aluminum heat sinks, CoolPoly materials can be 3D net shaped, and half the weight and cost to produce.

Lynkdec06fig6
Figure 6

Since ThermaLynk technology reduces the number of manufacturing and assembly steps, as well as the number of different materials, it can enable an LED package assembly (such as the one shown in Figure 5), to be molded into a single-structure LED package looking something like the one shown in Figure 6. The entire area in blue can be molded into a single structure equal to aluminum, fins and all.

Lynkdec06fig7
Figure 7
Lynk Labs provided first level demonstrations of ThermaLynk advantages at the LEDs 2006 conference by integrating a Lynk Labs SB-6500 AC LED module onto a CoolPoly carrier. “Thermal imagery [see Figure 7] shows the LED module operating at 45 ° C - on CoolPoly material in room ambient temperature - well within the rating of the die and package requirements” said Bob Kottritsch, VP Marketing & Product Dev. for Lynk Labs Inc.

Thermal management of the LED package and luminaire is presently one of the fundamental challenges for LED research and product design development needed to realize the cost/performance advantages of LEDs in solid state lighting. Lynk believes the manufacturing and cost advantages ThermaLynk enables can be leveraged all the way up to the luminaire and to the end customer.

“This is where the real fundamental industry change occurs” says Stewart Hough, VP Business Development at Lynk Labs. “Today’s LED packaging process at the discrete device level comprises multiple steps and materials. ThermaLynk technology applied to Chip On Luminaire products reduces materials and process count to create a profound improvement in the cost structure needed to take LEDs to broad market applications and customer penetration.”

Lynkdec06fig8
Figure 8
A vehicle tail light (Figure 8), street light or almost any LED product can be chip on board molded product using less material, reduced manufacturing steps, lower weight and have integrated thermal management using ThermaLynk technology according to Lynk Labs.

The company has already started developing samples of LED packages and Chip On Luminiare assemblies with potential licensing partners and is discussing several applications with OEMs including backlighting, traffic signal, and automotive lighting COL assemblies.
