To realize the form factor, performance, and reliability goals in SSL product development, design teams should perform thermal simulation early in the development cycle, writes TOM GREGORY.

The explosive growth of the LED lighting market in recent years has been driven by a number of factors, not the least of which are green legislation and environmental concerns. LEDs are far more efficient than conventional light sources such as incandescent lamps, are more environment-friendly than fluorescent lamps because they don't contain mercury, and can be tuned for both color and brightness. So, LEDs are very flexible light sources for professional, industrial, and consumer applications, but the design of solid-state lighting (SSL) products is a complex multidisciplinary problem. Here we will focus on the thermal challenge and how simulation can help development teams deliver products that match reliability, form factor, and performance goals (Fig. 1).

Indeed, the promised operating life of LED lamps — usually somewhere between 25,000 and 50,000 hours — has not always materialized and SSL product performance sometimes deteriorates over time. Performance (quality and quantity of light output, operating life, color maintenance, and other parameters) is closely linked to the temperatures experienced within a lighting fixture or replacement lamp. For a given environment, temperature is directly related to how effectively the design of the fixture can dissipate internally-generated heat.

Design challenges

Two other related factors have an effect on long-term reliability in LED lighting: the aluminum electrolytic capacitors employed for energy storage in LED driver circuits, and the market demand for lighting manufacturers to create ever-more compact fixtures and lamps.

1410leds Fea 4 Fig1

© Future Facilities Limited; restricted use.

FIG. 1. Thermal simulation of an A-lamp side-by-side with the finished product shows how simulation helps a team to meet design goals including form factor.

With the exception of electromechanical components such as fans, aluminum electrolytic capacitors are notorious for being the life-limiting components in many electronic circuits. The capacitors are electrochemical devices in which a wet electrolyte is gradually used up to reform an aluminum oxide dielectric layer during normal operation. The capacitors ultimately dry out and fail catastrophically. In high temperatures the process is accelerated.

Smaller lighting fixtures are needed in professional applications such as entertainment lighting so they can be transported and handled more easily and are less obtrusive in use. In retrofit applications — everything from street lamps to domestic downlights — there is a need to keep sizes and shapes within the limits defined by older lighting technologies. This normally includes cramming the electronic driver circuit inside the fixture, as well as the LED emitter module and lenses, in the case of directional lighting.

Related articles:
Determine LED temperature effects for reliable SSL products
Coupled thermal-electrical simulations shed light on LED performance
Simulation enables optimum LED street light heat-sink design
Four ways to die: Overcoming common challenges in SSL design

Fitting driver circuits

LED driver circuits are needed to convert the AC grid voltage to the low DC voltage needed to power the LEDs, and to ensure that they're driven for maximum output in an efficient way. Despite their high efficiency, LED chips (the "die") do generate heat, as do components in the driver circuit, particularly power transistors. When you put all the heat-generating parts in a small space to meet physical design limitations, things can get very hot very fast, even to the point of exceeding the typical 100°C maximum temperature that an LED junction can withstand.

The challenge for LED fixture and lamp designers is how to fit everything into the available space while ensuring that temperatures at critical points both inside and outside the final product remain within acceptable limits. That's where thermal simulation, especially when applied throughout the design process, can help. Fig. 2 is an example of chip modules under thermal simulation that display good thermal management.

Thermal simulation benefits

Historically, much of the design and development work has been done based on using rules of thumb to calculate from a thermal perspective how a particular component, printed circuit board (PCB), or complete assembly might perform. As the design and development process for any electronic product is iterative, the calculations have to be repeated throughout the product development process. At each stage, design errors need to be corrected and even then hotspots can be missed. Every change adds time and expense to the project, adding to the risk of missing windows of opportunity in the market.

Furthermore, the relatively poor accuracy involved in this approach results in designers having to over-engineer thermal management. As an example, this could mean using a larger heat sink than necessary, adding size and cost to the end product. It may even mean including a fan where one is not required, greatly reducing the final product's mean time between failure (MTBF), a measure of expected operating life. Perhaps even more important, it could result in thermal issues that don't manifest themselves until the product is already in the field. The potential costs of warranty claims, product swap-outs, and damage to brand reputation can be catastrophically high.

So, thermal simulation enables engineers to design smaller, more economical products that perform better and last longer. Thermal simulation offers the added benefit of being able to iterate the design rapidly, trying multiple options in thermal management and ultimately cutting time-to-market.

Accurate thermal simulation enables LED lighting products to match design goalsAccurate thermal simulation enables LED lighting products to match design goals

1410leds Fea 4 Fig2b New

© Future Facilities Limited; restricted use.

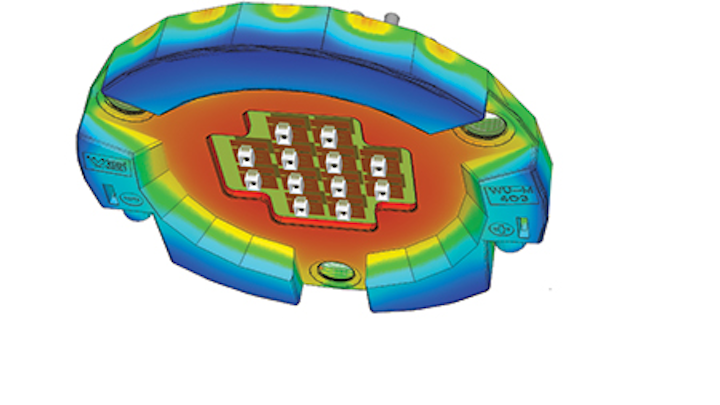

FIG. 2. Thermal simulation shows that these chip modules display good thermal management characteristics.
