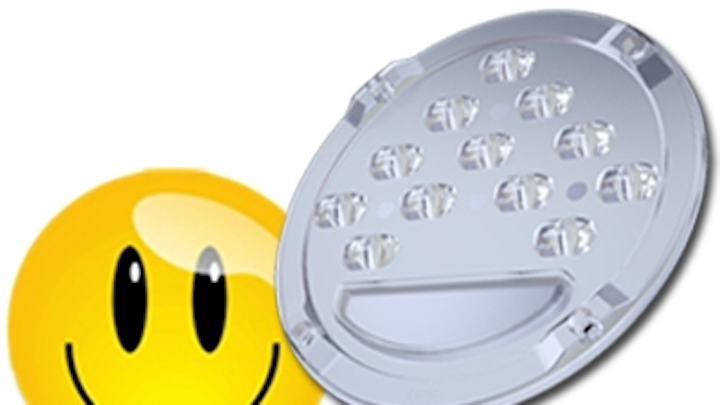

Nactus Smile, the first-of-its-kind LED optical system realized in round shape, offers new ideas for the execution of exclusive lighting projects. Nactus Smile is a single die cast round array with 12 lenses, created in 8 different models, each with individual photometry and typical lighting pattern.

Designed for most popular packaged LEDs, the LED optical system is available in many beam angles: Symmetric, Asymmetric, Rotosymmetric, Square; complying with IESNA Type I, II, III, V and ECE ME3a.
The modules can be IP protected by placing a silicone gasket into the groove around the perimeter edge.

Fit for any application in street lighting and wide area lighting, both outdoor and indoor.

General characteristics:
• High precision injection molded optical modules
• Designed for most popular LEDs
• 8 different 12-lens-modules available

Features:
• Optic type: Round lens array with 12 lenses
• Material: Optical grade PMMA
• Dimensions: Diameter - 110 mm; height - from 6.00 mm to 8.00 mm
• Beam angles: Symmetric, Asymmetric, Rotosymmetric (60° and 90°), Square (120°); complying with IESNA Type I, II, III, V; ECE ME3a.
• Lighting efficiency: Over 85%
• Four perimetric holes for the insertion of screws allow the module to be fastened easily to the PCB
• The modules are available with a silicone gasket placed into the perimeter groove for IP

Typical applications:
Any application in street lighting and wide area lighting:
• Street an public lighting: With or without sidewalk and bicycle lane, tunnel light
• Wide area lighting outdoor/indoor: Garden light, residential, commercial, retail, shop, architectural, hospital & hospitality light, canopy, petrol gas station, parking light, industrial light, professional light
