The Zhaga Consortium has announced publication of the anticipated Book 13 specification that’s focused on standardized form factors for LED drivers. Moreover, the industry group has posted a more robust database of solid-state lighting (SSL)-centric products that have been accredited by a third-party certification body (CB) as being compliant with one of the Zhaga Books.

Interested in more articles & announcements on LED standards?

The new Book 13 specification will offer LED-based luminaire developers flexibility in terms of driver sourcing and interchangeability. SSL products based on the Book will feature the potential for a failed driver to be replaced in the field with a product from a different driver manufacturer if necessary.

Zhaga Consortium publishes LED driver Book 13, posts compatible products dataZhaga Consortium publishes LED driver Book 13, posts compatible products data

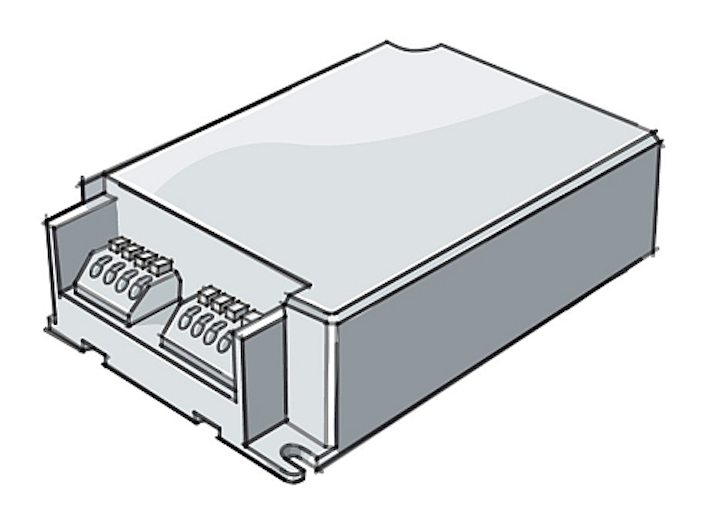

Primarily, the new Book defines the maximum dimensions of different driver options along with a definition of standard mounting points for mechanical connection to a fixture. The industry group surveyed the market and in the new Book defines 78 different driver categories used across all SSL applications. Going forward, however, the consortium is recommending that luminaire manufacturers choose from newly defined A and B Type drivers with 13 and 14 size options respectively in each type.

The Type A drivers are typically used in applications such as down- and spotlights and have relatively compact rectangular dimensions. The Type B drivers are generally slimmer and longer and are intended for office and industrial applications.

The Book 13 specification also addresses the electrical interface between the driver and LED module. As we documented in a recent article, Zhaga has chosen to reference the electrical interface work done by the Module-Driver Interface – Special Interest Group (MD-SIG). Book 13 mandates the use of the LEDset1 specification from MD-SIG rather than having Zhaga itself define a duplicate electrical specification.

The new Book 13 specification can be downloaded at the Zhaga website. There is also a white paper that provides a detailed explanation about the thinking and choices made in the Book 13 driver categorization.

Zhaga product database

Meanwhile, the Zhaga Consortium is also striving to make it simpler for luminaire developers to locate compliant components for use in new product designs. The consortium has a new enhanced version of its Certified Products Database. All of the products in the database have been tested by a CB for compliance with Zhaga Books.

While the Zhaga website had a prior listing of compliant products, the new database is interactive and easily searchable. There is added data for all of the listed products and filters that developers can use to narrow a search based on the application at hand. The database is easily accessible on the group’s website.

Zhaga continues in its mission to simplify the supply chain in the SSL industry as described in an article by former Secretary General Menno Treffers. Moreover, the use of off-the-shelf modular components can speed time to market.
