LSD expands possibilities for beam shaping and optical control

Light Shaping Diffuser (LSD) technology offers numerous possibilities for controlling and shaping the output of LED-based systems, writes Lis Eastham.

Oct 4th, 2004
Content Dam Leds En Articles 2004 10 Lsd Expands Possibilities For Beam Shaping And Optical Control Leftcolumn Article Thumbnailimage File
For many years the lighting industry has used mirrors and lenses as its traditional tools for creating directional beams, together with simple diffusing materials where a uniform spread of light is required. However, the efficiency of many optical control components can be quite poor, and new technology has emerged to revolutionize the way in which light is shaped and directed.

One such technology is the Light Shaping Diffuser™ (LSD), developed and manufactured by Physical Optics Corporation. Existing LSD applications already include LCD backlights, LED displays and machine vision, as well as automotive and aerospace lighting. The technology is now finding volume applications within architectural and signage lighting.

Developed in the late 1980s and available in production since the early 1990s, LSDs have enabled lighting designers to solve problems of controlled light delivery in ways that had previously been impossible, or at least extremely expensive.

LSD technology

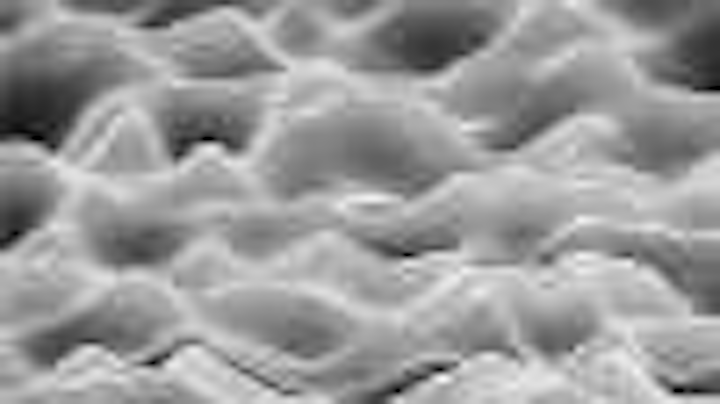

SEM of LSD
LSDs are manufactured from thin film substrates, such as polycarbonate or polyester sheets. On one side of the substrate is applied a special holographically generated surface relief pattern, replicated from a holographic recorded master copy. The pattern creates a totally random surface - in fact they can be thought of as aggregates of randomized micro-lenses (see SEM photo). These surface holographic textures shape light by precisely controlling its energy distribution along the vertical and horizontal axes.

LSDs work as diffusers for any kind of light, independent of its wavelength or source. They also eliminate Moiré patterns and color diffraction, and provide dramatic results in terms of high transmission efficiency, virtually unlimited beam-shaping capability and the total homogenization of light.

When used as a diffuser, transmission efficiencies of up to 92% can be achieved, with excellent light uniformity. This compares with around 65% efficiency for ground glass or plastic diffusers. Under certain conditions LSD structures transmit more light than the original material from which they're made; for example, polycarbonate only transmits a maximum of 89% of light. This is because the holographically generated surface possesses special anti-reflective properties. As LSDs provide greater photon density, compared to other diffusers, they are highly suitable for high ambient light conditions.

Homogenisation

Homogenisation
LSDs come in the form of thin sheets with a variety of diffusion angles from 0.2 to 100 degrees, depending on how much diffusion is required. Lower diffusion angles are particularly suitable for homogenising a beam of light, without diverging the beam too much, so they can remove "hot spots" and dark rings, which tend to be inevitable features of the beams of most light sources, including LEDs. However, the greater the diffuser angle, the more homogeneity is achieved.

LSD films with wider diffusion angles make outstanding conventional diffusers and are already used extensively to disperse light evenly across the screens of lap-top computers, instrument panels and mobile phones.

With LEDs, the diffusing material can be placed almost on top of the LED - despite the LEDs' brightness and intense directionality, a totally uniform effect is achieved over the entire area, with no imaging (see Homogenisation photo).

Importantly, the diffusion effect of LSDs is based on diffraction, rather than refraction. Also, LSDs do not converge light, they control the light distribution by divergence, emulating a negative lens. Therefore they cannot make a spot of light smaller.

Shaping the beam

Beam shaping
However, from the point of view of lighting design and engineering, it is the use of LSDs as "beam shapers" which has the greatest number of potential applications.

For example the "circle-to-rectangle" version of the film can re-shape an ordinary circular beam of light into a perfect rectangular distribution, which could have great potential for certain lighting applications using LEDs (provided that the source is highly collimated).

Another version, a "line generator" film, can take the same circular beam and stretch it in one direction only, throwing a long line of light on a wall or along the floor, much more effectively than the large pressed glass elongation lenses currently in use. Other applications could include using special elliptical LSDs in front of the lamp, so that circular beams always appear perfectly circular, even when projected onto walls at different angles.

The technology has great potential for lighting designers; for example, the film could be used to shape the distribution of road lanterns, to prevent unwanted back spill and "light trespass". LSDs can be effectively combined with other optical components such as lenses, Fresnels, and prismatic material - and in future luminaire design, the holographic structure could be replicated directly onto glass or injection-moulded into plastic parts.

In addition to its usual forms, namely as a thin web film and sheets in polycarbonate, polyester and acrylic, LSDs are available as cut-to-print parts, colour-tinted, as a double-sided diffuser, as UV-transmitting acrylic and in the form of a glass substrate for high temperature or high energy (laser) light sources.

About the author

Lis Eastham is a Sales Engineer and Product Specialist with BFi Optilas Ltd. Telephone: +44 (0)1908 326326.
BFi Optilas Ltd is the UK and European distributor for Physical Optics Corporation (POC), Torrance, California, which manufactures Light Shaping Diffusers.

BFi Optilas Ltd is a member of the Photonics Cluster (UK).
