Targetti prepares for Light+Building with architectural indoor and outdoor lighting products

Content Dam Leds En Ugc Iif 2014 03 Targetti Prepares For Light Building With Architectural Indoor And Outdoor Lighting Products Leftcolumn Article Thumbnailimage File
40236 0 thumb Date Announced: 20 Mar 2014

As a leading company in the international architectural lighting market for indoors and outdoors, Targetti presents the many new products belonging to all brand collections at LIGHT+BUILDING.

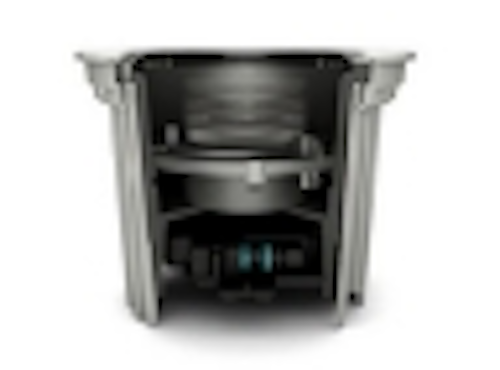

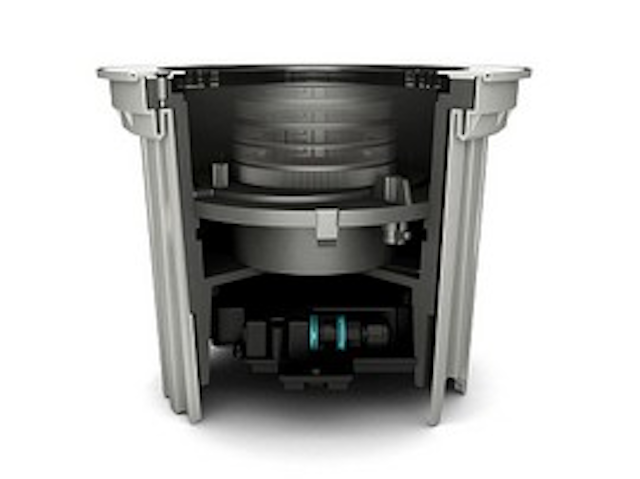

One of these is KEPLERO, the revolutionary new outdoor light fixture available in two versions -- ZOOM and GIMBAL.

Unique dimensions, a unique finish and two technological hearts that totally revolutionise the concept of the “up -light”.

Keplero is available in two versions. The innovative “Zoom” version that allows to play with four different beams just by moving the optical chamber inside, and a low power high performance “Gimbal” version with defined beams, super spot or flood even in rectangular sections.

ZOOM VERSION
THE REVOLUTION OF MOVING LIGHT
Perfect strength and staticity of an inground fixture contrasts with the dynamism of a unique optic system that creates numerous luminous effects.

LIGHT IN CONTINUOUS EVOLUTION
The KEPLERO light can change at any time thanks to its innovative optical system. With Keplero the choice of light effect can happen at any time, even after installation; the patent pending optical system is revolutionary because it has three degrees of freedom and can be configured in different ways. Extraction, transfer and rotation are the three movements that the Keplero optical chamber can perform. Each of them is guided by graded rings which help to identify the orientation of the light beam immediately in the event the movement needs to be replicated on several fixtures in a line.

EXTRACTION
The four step extraction process makes it possible to modify the beam aperture from soft, flood, medium wide flood and wide flood. Every step is guided and identifies a different beam aperture.

TRANSFER
The 2cm transfer makes it possible to zoom the light emission in or out creating a beam orientation up to 20°. This movement, for lighting vertical surfaces, makes it possible to decide where to attach the light and to set the desired intensity. Zooming out the optical body creates a softer effect leaving the lower parts of the wall in the shade, zooming in the effect will start from the bottom and be more pronounced.

ROTATION
Rotation makes it possible to rotate the beam parallel to the surface to follow any element to be lit irrespective of its shape and position. The locking system is guaranteed for every movement to maintain aim blocking over time.

GIMBAL VERSION
With 12W the Gimbal version is a real projector with an adjustable optical system up to 40° for maximum flexibility. It is fitted with a special ad hoc LED board made up of 4 chips with acrylic lenses which enhance light emission. The optical system makes it possible to have defined and precise beams with three different beam angles. A 7° beam Super spot version and 30° beam flood versions with round or rectangular sections. Keplero Gimbal will surprise you with its high performance and the clarity of its beams; thanks to its ability to light surfaces as far away as 30 metres such as building facades, church towers and sculptures it can be called a real professional projector. Its high performance, together with an adjustable optical system up to 40° with aim locking system and its installation flexibility make it highly versatile and reliable. The light emission can be customised further by adding the various accessories available.

Contact
Targetti Poulsen USA Inc. +1-954-349-2525

E-mail:info@ghenos.net

Web Site:www.targettiusa.com
