The LuxCal250 provides accurate luxmeter calibration over an exceptionally wide dynamic range.

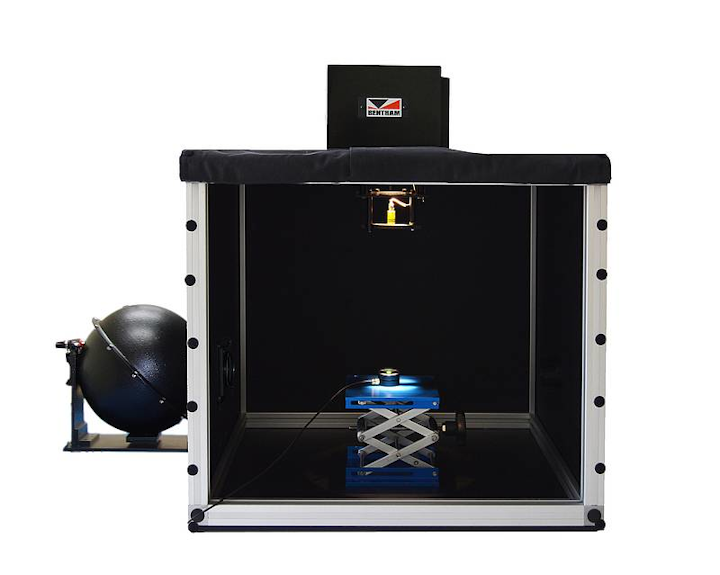

Comprising a light-tight enclosure housing standards of illuminance, Bentham’s LuxCal250 presents a straightforward and cost-effective calibration solution obviating requirements typical of traditional, distance-based calibration.

Core benefits

+ Calibrate luxmeter/ luminance meters in accordance with ISO/CIE 19476:2014
+ No Darkroom or optical bench required to achieve wide dynamic range
+ Calibration traceable to PTB, Germany
+ Optional luminance or UKAS accredited calibration

Features

- Houses standards in light tight enclosure with easy access to position devices under test
- Colour shifted (2856K quartz tungsten halogen (QTH) standards (CIE illuminant A)
- Output level of the illuminance calibrator is varied via four neutral density filters, providing five calibration levels
- Lab jack and height gauge, featuring a laser alignment aid, allow accurate positioning of device under test
- Output level of the luminance calibrator is varied via three neutral density filters, providing four calibration levels
- Includes high performance 610 programmable constant current power supply

Reported Parameters

- Illuminance ( lx )
- Optional Luminance ( cd.m ^(-2) )
