Introducing Acrobat Small Aperture from CSL

Creative System Lighting
Creative System Lighting

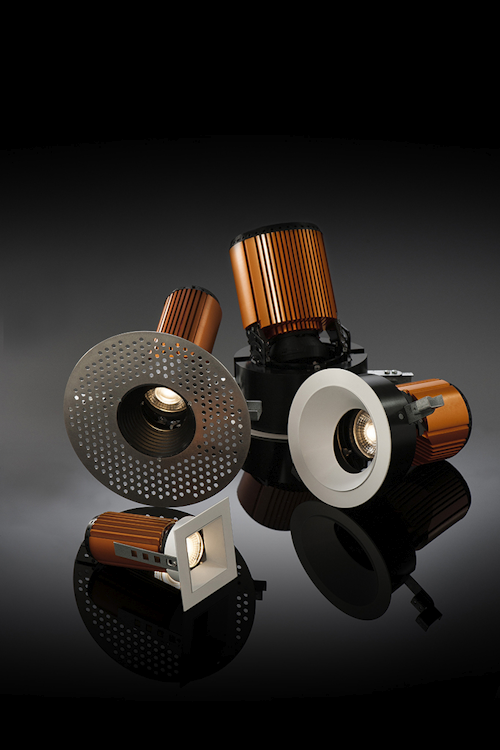

Creative Systems Lighting®’s newest collection of small aperture adjustable downlights, called Acrobat, is exactly what the built environment needs right now. Heeding the call of architects and lighting designers, CSL is proud to unveil this latest collection of high-performance, low-profile LEDs.

  • Available trimmed or trimless in 1, 2, 3 and 4” sizes
  • The downlights feature an integral input driver and 90% efficient, 0.99 power factor, high-performance COB LEDs with a two-step binning process
  • 50,000 hours at 70% lumen maintenance, multiple dimming options, four different CCTs (2700, 3000, 3500 and 4000K) field replaceable light engine and driver (L70)
  • UL/C-UL listed for damp locations, and most trims are offered with an optional lens for wet locations
  • The trim styles are Open, Pinhole, Baffle and Wall Wash and the beam spreads are Spot, Narrow, Flood and Wide Flood
  • The extruded aluminum heat sink minimizes LED temperature for longer service life
  • Available in four housings types (Non-IC, IC/CCEA, Remodel and 2” Shallow), as well as accommodating ceiling types up to 2” without any light loss between ceiling thicknesses
  • The luminaire is adjustable up to 40º in the 4” fixture
  • Perforated mud ring for trimless applications allows installers to create a clean, seamless ceilings with a knife edge finish
