American Bright’s EzyLED

May 14, 2019

Patented LED chip design reduces circuit driver complexity!!

Smart LED suitable for tight-fitting design


Chino, C.A. (April 10, 2019) – American Bright, a global LED lighting solutions manufacturer, today announced a series of EzyLED 3030. EzyLEDs are connected in parallel, and directly driven by a conventional 12V /24V AC/DC source. For this series of low-to-medium powered LEDs, the IC is built into the LED chip design which dramatically reduces the additional circuitry and eliminates the need for on-the board IC driver and other passive components. Without the need for extra resistors, bridge rectifiers and current regulative diode, inventory management is dramatically reduced making this an ideal solution due to its simplicity and ease of use.

The EzyLED 3030 devices operate over a wide voltage range while the luminous intensity remains constant for 10.5V < Vin < 24V, and maintains approximately 50% of its nominal value when input voltage drops to 9V. These devices can actively modulate the power usage by decreasing the input current to avoid overheating. The input current, light output, and color temperature can stay consistent despite the exterior voltage changes or fluctuations.

Features and Benefits:

● Patented LED chip design with built-in IC.
● Uses conventional 12V /24V AV/DC voltage sources.
● EzyLEDs connected in parallel.
● Luminance and Correlated color temperature (CCT) remains.
● Built-in rectification for non-polar applications.
● Active thermal management.
● Wide Voltage input range for easy adoption.
12 V AC/DC: 10.5 – 24V
24 V AC/DC: 22.5 – 36V


● Automotive: side marks, rear lamps, interior lighting
● Indoor: Linear Lamps, down light, spot light, advertising
● Outdoor: Architectural and General lighting

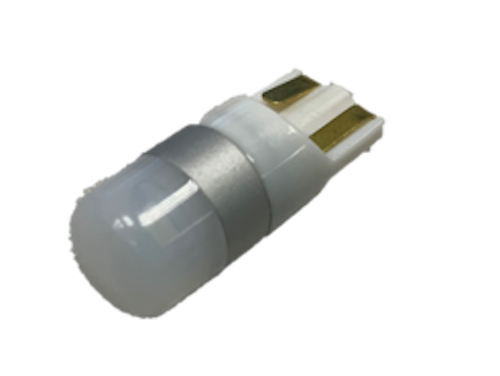

New  ezyLED now is also available in T-10 bulb!

Click for T-10 product information!

T-10 bulb
