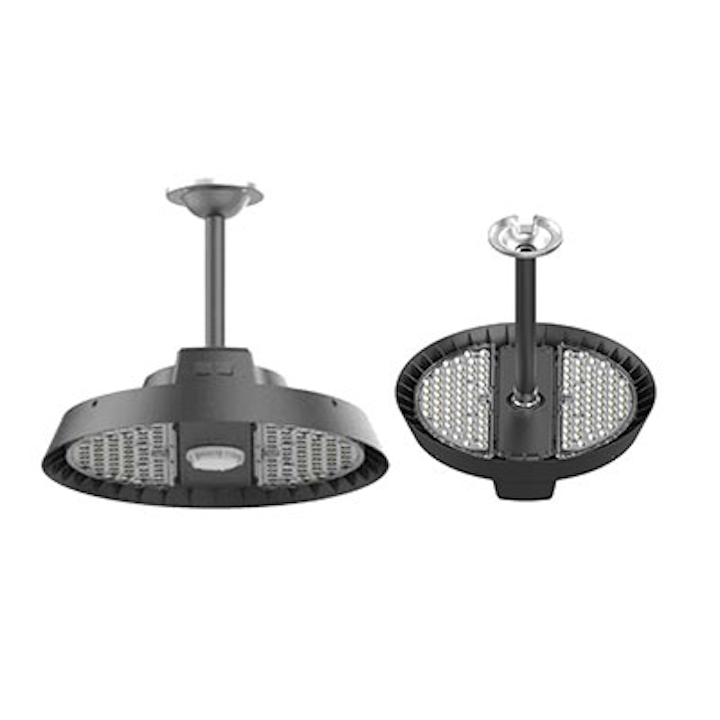

LZ Series Integrated Control LED High Bay

Indirect Up-Light Mounting
Indirect Up-Light Mounting
Integrated Control LED High Bay The LZ is a premium round LED high bay luminaire. It is designed to illuminate a wide variety of settings including commercial, industrial & retail settings such as warehouses, manufacturing plants, sporting venues and big-box retailers. ▪Plug and play design, upgrade to smart control in seconds.
▪Field installable uplight kit to eliminate dark ceilings and corners
▪Field changeable optics: 60º, 90º, 120º, 50º * 100º
▪All-In-One IoT lighting solution featuring network control, wireless touch switch control, auto scheduling, area control,
daylight harvesting, occupancy sensing, and cluster control
▪Premium 10 year warranty including labor cost.
▪California Title 24 compliant
▪IP 65 water and dusk proof housing
▪Mounting options include: hook mount, 3/4'' NPT adapter, yoke bracket, aircraft cable, indirect mount, and post top mounting.
Available in 3000K (warm white) 4000k (neutral white) and 5000k (cool white) color temperatures.*
▪Long-life LEDs provide 143,000 hours of operation with at least 70% of initial lumen output (L70).**
▪LZ Series is available in 145lm/W and 170lm/W, providing lumen output ranging from 10,800 to 32,000 lumens
▪Available in 120-277 AC voltage & 347 - 480 AC .
▪0-10vdc dimming drivers are standard.
▪Watertight, compression-type electrical connectors.
