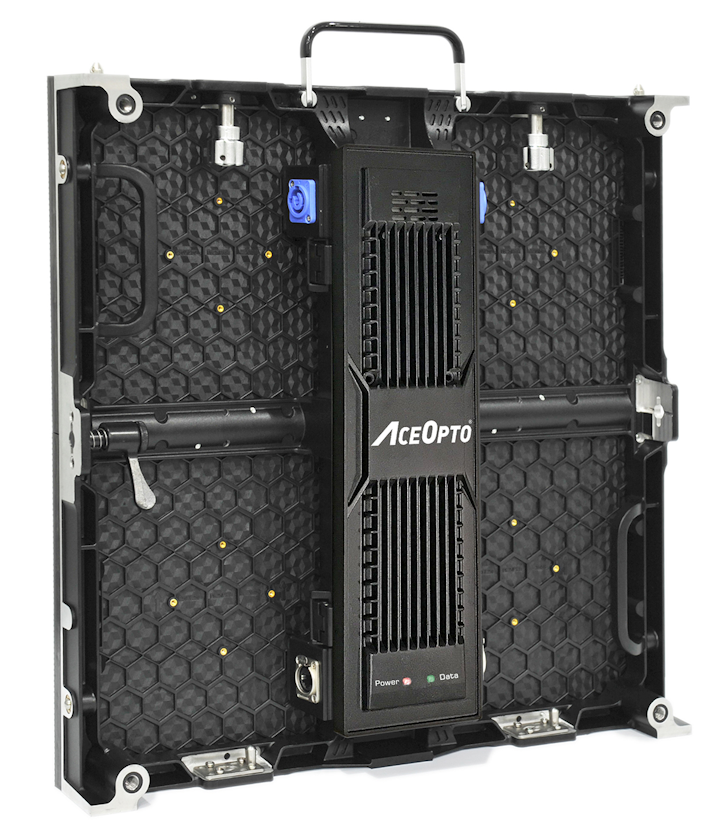

Indoor LED Display Cabinet
Indoor LED Display Cabinet
Basic Info
Pixel Pitch (mm)----------------------------------------3.91
Pixel Configuration----------------------1R, 1G, 1B 3 in 1
Density-------------------------------------65,536 pixel /㎡
Weight-------------------------------------------------8kg
Panel Size: -----------------------500mmx500mmx70mm
Main Material--------------------Die Casting Aluminum

Color & Brightness Feature
Colors-----------------------------------------------32 bit
Color Temperature (adjustable)---------3500 K~9500K
View Angle (min, 50% brightness)-----H≥110° V≥110°
Grey Scale--------------------------------------- -32 bit
Contrast Ratio------------------------------------4000:1
Dimming------------------100 grade (Manual & Auto)
Brightness (calibrating value)---------------1,500 nits
Brightness Uniformity----------------Higher than 97%
Color Uniformity-----------------Less than 0.003Cx,Cy

Electric Property
Drive Type -----------------Constant current drive
Scan Type --------------------------------------1/8
Input Voltage -------------------------AC 110 /AC230
Frame Rate --------------------------------50Hz/60Hz
Refresh Rate --------------------------480Hz~3000Hz
Earth Leakage Current ----------------Less than 1mA
HUB type---------------------------------------HUB75

Durability
Lifetime ( 50% Brightness ) ------------100,000 hrs
MTBF ------------------------Greater than 10,000 hs
Operating Humidity Range ----Operating 10~96%
Defects Rate-----------------------Less than 0.00001
Operating Temperature --------------20℃ ~ +60℃
Storage Temperature -----------------35℃ ~ +85℃
Ingress Protection -------------Front IP65, RearIP43
Neat degree ---Each pixel to the next one ≤0.2mm
Certification---------------------------CE,RoHS,EMC
