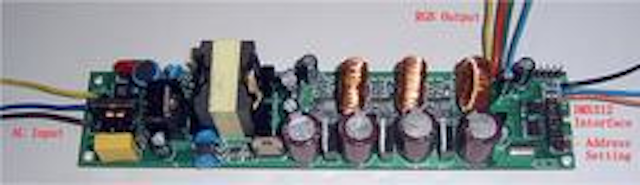

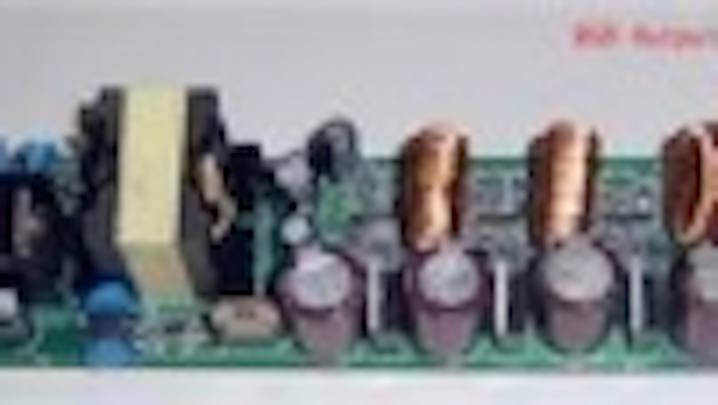

RGB Power LED Driver with onboard DMX512 interface

Nov 19th, 2007
Content Dam Leds En Ugc 2007 11 Rgb Power Led Driver With Onboard Dmx512 Interface Leftcolumn Article Thumbnailimage File
Date Announced: 19 Nov 2007

Input Voltage Range: 190V…265V/AC
Frequency: f = 50/60Hz
Power Factor: pf≥0.95
Efficiency: up to 80%
Operating Ambient Temperature: -10ºC to 40°C
Storage Ambient Temperature: -20ºC to 85°C
Power Output Range: Poch 1-12W Per Channel (In series 1-12pcs)
Output Current: Ioch 350mA + 0… -5% @100%
Output Voltage: 50V DC
Dimming Control: DMX512
Address Range: 1–512 via address jumper setting or handheld device setting
Channel1 = n Channel2 = n+1 Channel3 = n+2
3 Fully Addressable constant current outputs.
Digital Dimming level from 0 - 100%.
On Board DMX512 Compliant Control interface.

Contact
shenzhen ledcyclone electronics and technology ltd. tel: +86-0755-83128892

E-mail:ledcyclone@126.com

Web Site:www.ledcyclone.com
