Marktech offers Cotco 5mm RGB LED for color mixing

Content Dam Leds En Ugc 2007 01 Marktech Offers Cotco 5mm Rgb Led For Color Mixing Leftcolumn Article Thumbnailimage File
14864 0 main Date Announced: 29 Jan 2007

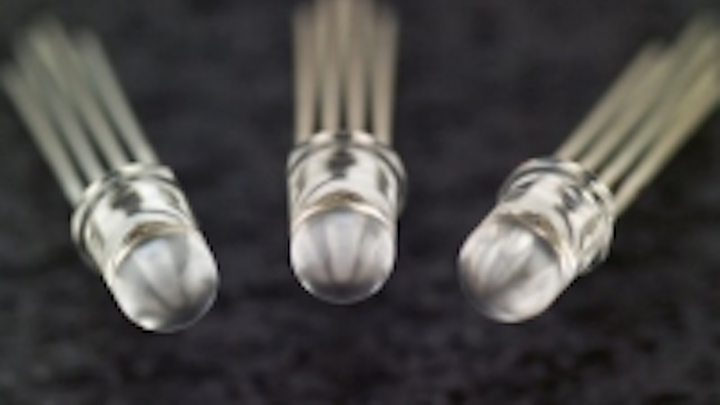

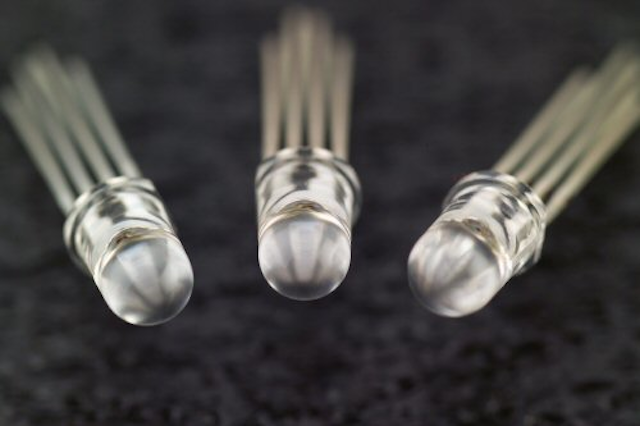

Latham, New York: Marktech Optoelectronics announced the availability of its versatile LC503NPP-20H-A3, 4-Lead, RGB solid-state light source from Cotco.

This RGB LED features a 20º viewing angle in a 5.0mm round lensed package that is perfect for use in accent and color-changing lighting applications.

The combination of high light output, low power consumption, and high-reliability materials means that these LEDs are a great choice for color changing applications. The LED also features a close chip density and brightness for excellent color mixing.

Its 4 pin package allows for individual control of each red, green and blue chip. This creates an opportunity for users to produce a complete color spectrum to better achieve specific and more uniform lighting architecture. By allowing individual control of each chip along with the LEDs improved efficiencies and output, designers can save additional power usage on their total lighting system to decrease overall operating costs.

Color-changing light applications use RGB LEDs to create light fixtures that can be tuned to a specific color. These multi-colored fixtures have a number of uses including event lighting, architectural accent lighting, mood lighting, and artistic installations. Additional applications for this RGB LED include multi-color backlighting, light pipes, full color signboards, decorative lighting, general indicators, and amusement equipment.

Features
· 5.0mm Package with Round Water Clear Lens
· 20º Viewing Angle
· Incorporates InGaAlP and InGaN Technologies
· High Operating Temperature Range: -40º ~ +95º C
· Luminosity of up to 4180mcd – Red, 4180mcd – Green, and 1100mcd - Blue @ 20mA

Pricing and Availability
Pricing for the LC503NPP-20H-A3 is $.55 in 10K lots with free samples currently available.

Marktech Optoelectronics:
Marktech has been an industry leader in the application and design of LEDs for over 20 years. Cotco Luminant Devices, Ltd. has chosen Marktech to exclusively handle all North American technical sales and marketing for their High Performance LED line. In addition to their Cotco line of LEDs, Marktech also offers Toshiba Tosbright® LEDs and Toshiba Constant Current LED Drivers along with a wide range of standard Discrete LEDs, Surface Mounts, Displays and Photo Sensors.

Contact
Carrah Daley, Marketing Manager Marktech Optoelectronics Toll Free: 800.984.5337 Tel. 518.956.2980 ext 220 Fax: 518.785.4725

E-mail:c.daley@marktechopto.com

Web Site:www.marktechopto.com
