Avago Technologies Introduces minature 3W LED emitters for SSL

Apr 13th, 2010
Content Dam Leds En Ugc 2010 04 Avago Technologies Introduces Minature 3w Led Emitters For Ssl Leftcolumn Article Thumbnailimage File
Date Announced: 13 Apr 2010

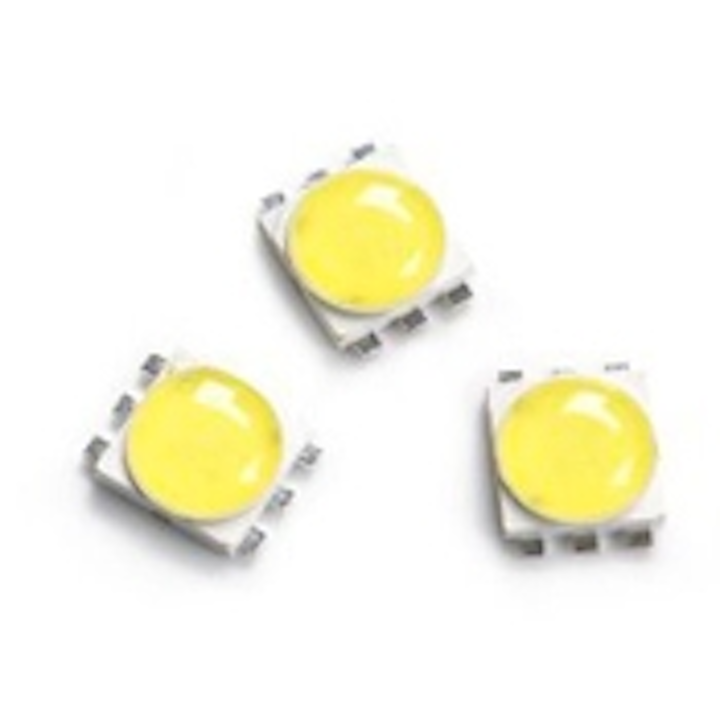

Avago Technologies (Nasdaq: AVGO), a leading supplier of analog interface components for communications, industrial and consumer applications, today announced one of the industry’s most compact and energy efficient 3-Watt (3W) miniature high power LEDs for use in a wide range of solid-state lighting applications. With dimensions of 5 mm by 4 mm by 1.85 mm thick, Avago’s compact 3W ASMT-Jx32 is packaged in a 6-leaded small outline package (SOP) and capable of being driven to up to 700 mA to provide high flux output performance. Additionally, this competitively priced compact LED emitter features a wide viewing angle and long life reliability. By delivering a high flux output of a minimum of 100 lumens (lm) at 350mA driving current, this new 3W LED emitter is ideal for safety exit and emergency lighting, portable lighting applications, street lighting, residential lighting, task lighting, and other solid-state lighting applications requiring high flux output performance.

The ASMT-Jx32 provides a wide viewing angle of 140-degrees to meet the needs of designers who require good color uniformity. Avago’s 3W emitter is a high performance LED designed to handle high thermal and high drive currents The ASMT-Jx32 features a maximum allowable junction temperature of 135 degrees-C to provide greater design flexibility to the lighting designers. This LED has high Electrostatic Discharge (ESD) resistance of 16 kV which makes this LED insensitive to ESD. As a result, special ESD protection equipment is not required to handle the part during installation. Moreover, this 3W LED is compatible with standard SMT reflow soldering process.

This LED is encapsulated in a heat and UV resistant silicone material and also features a low thermal resistance of 9 degree-C per Watt due to its superior heat dissipation capability. In addition, the electrically neutral heat pad allows arrays to be connected on a common heat sink – thus simplifying thermal design.

Key Features

• Available in Cool White, Neutral White and Warm White colors
• Small footprint and low profile
• High flux output and energy efficient
• Direct heat transfer from metal slug to mother board
• Silicone encapsulation
• Compatible with reflow soldering processes
• Long operating life
• Non-ESD sensitive (threshold > 16kV)
• Moisture sensitivity: MSL 1
• Pb-Free and RoHS compliant

Pricing and Availability

Avago’s ASMT-Jx32 LEDs are priced at $2.50 each in 1,000 piece quantities. Samples and production quantities are available now through Avago’s direct sales channel and worldwide distribution partners. More information about Avago’s LED products can be found at www.avagotechlighting.com or www.avagotech.com

Contact
Jacob Sayer VP Business Development and IR

E-mail:press.relations@avagotech.com

Web Site:www.avagotech.com
