SinkPAD Corp. launches thermal management printed circuit board for LED cooling applications
Anaheim, CA – SinkPAD Corporation is an innovative thermal management company addressing thermal challenges facing the electronics industry specifically in aluminum PCB LED applications.

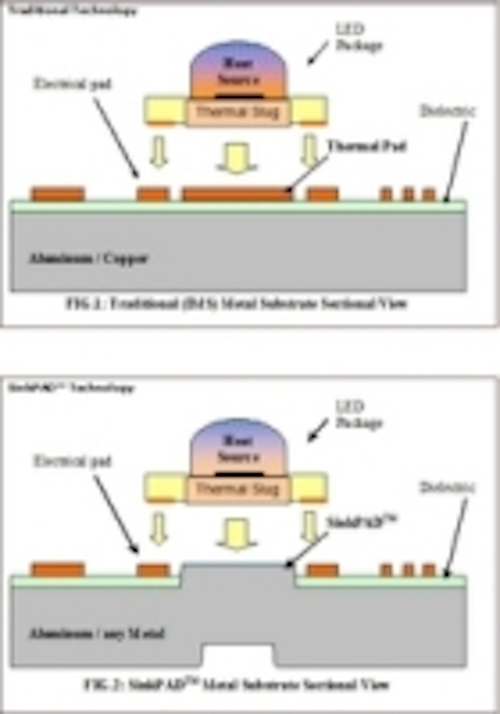

IMS PCBs (Fig.1) with efficient through plane thermal conductivities are important for high heat generating LEDs. Although high thermally conductive metals are used, IMS PCB performance is dependent upon the contact area, material thickness and thermal resistance of each material located between heat source and the atmosphere.
SinkPADTM technology (Fig.2) for aluminum IMS PCB significantly improves heat management in all LED systems but is most effective in high-power and high-bright surface mount LED systems that can’t efficiently dissipate heat rendering them unviable for commercialization.
SinkPADTM conducts heat out of the LED system (LED cooling) by enabling a direct thermal path between the LED and surrounding atmosphere, which eliminates thermal resistance introduced by the dielectric material in a traditional IMS PCB or MCPCB. The SinkPADTM design completely removes the substance with the lowest thermal conductivity/highest thermal resistance from the structure. SinkPADTM still uses a dielectric, but this dielectric isolates the metal base electrically and leaves it thermally connected. The thermal path should be electrically neutral within the LED package, i.e. Cree XLamp, Luxeon Rebel from Philips Lumiled, PhlatLight from Luminus, in order to solder the LED directly to the SinkPADTM. To find out how SinkPAD’s technology can remove the heat in your LED application, contact SinkPAD Corporation or visit the SinkPAD website.
SinkPAD Corporation is an innovative thermal management company addressing the thermal challenges facing the electronics industry. The company’s patent pending PCB technology makes it possible to conduct heat out of the LED system and into the atmosphere quickly and cost effectively while providing their customers with a first-to-market competitive advantage.
