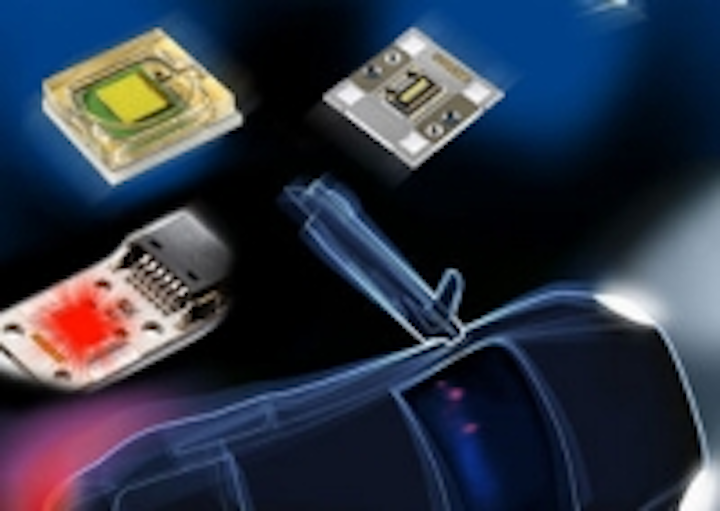

Osram's Ostar product platform offers options for automotive lighting, safety, convenience and control

June 29, 2010
Date Announced: 29 Jun 2010 LEDs offer automakers significant advantages over conventional lighting solutions. Their efficiency provides major energy savings which can be reflected in lower fuel consumption and reduced CO2 emissions. They will also outlast the vehicle itself in most cases, effectively eliminating lamp replacements and reducing potential warranty costs. The use of LEDs can also enhance driver safety by illuminating the road surface with high definition and reduced glare, enhancing perceptions of contrast, especially in the peripheral field of vision, e.g., where pedestrians, animals or poorly lit vehicles may suddenly appear at night. Redefining Forward LightingOSRAM began redefining the concept of forward lighting design with its OSTAR Headlamp LED. Its integrated shutter for horizontal light cutoff reduces system complexity making the OSTAR Headlamp LED the first light source to simplify automotive headlamp optical systems. This integrated approach significantly reduces mounting depth and takes up considerably less real estate than conventional headlamps. The OSTAR Headlamp is available as a product platform with up to five LED chips. An innovative conversion process provides a seamless white color impression at maximum brightness levels. Depending on the variant and operating current, values between 125 lm and 1000 lm are achievable. With its scalable brightness and myriad of configuration options, the OSTAR Headlamp offers limitless styling options and is perfectly suited to all headlamp functions, including low and high beams, fog-lamps and daytime running lights (DRL), as well as motorway beams and cornering lights.As use of DRL has continued to migrate from high-end models into virtually every type of passenger vehicle, OSRAM has developed a new OSTAR Compact LED specifically designed for DRL Light Guide applications. With a power draw of 5 W and an operating current of 1.4 A, the OSTAR Compact achieves a typical brightness of 300 lm and its 2 mm² chip provides high luminance. With this small, high-power light source, light guide systems can be produced with just two LEDs. This robust component also has the optimum heat removal rate of 6 K/W, making it ideal for the high-temperature zones at the front of an automobile.With the OSTAR Compact, OSRAM Opto Semiconductors has not only further extended its offering of LEDs for DRL applications, but has also enabled the entire automotive LED portfolio of a headlight manufacturer to be perfectly matched for all headlamp and front-of-vehicle lighting, bringing color harmony to the entire front of the vehicle. In addition to the OSTAR line of products, OSRAM offers the OSLON SX ECE and MX ECE as complimentary forward lighting products. The OSLON devices round out OSRAM’s LED power forward lighting portfolio and offers a complete range of output from 20 lm to 1000 lm, enabling unmatched styling freedom and performance. All of the forward lighting products offer the same color binning which means the entire forward lighting scheme can be harmonized with homogeneous color.Infrared LEDs Provide Visible BenefitsOSRAM Opto Semiconductors’ innovative IR OSTAR Observation family of infrared LED emitters (850 nm) are the most powerful infrared LED arrays in the world. Designed specifically for use in night vision equipment and CCTV applications, they deliver a wavelength specially adapted to CMOS/CCD camera systems. IR OSTAR LEDs can be used with cameras in the vehicle to aid in functions such as pedestrian protection, night vision systems, lane departure warning systems and in detecting objects in the rear of the vehicle when backing up for rear collision avoidance. These LEDs can also be used inside the vehicle for features such as drowsy-driver sensing and out-of-position sensing for air bag deployment. Available as compact, multi-chip arrays, IR OSTAR LEDs are certified for automotive applications at temperatures up to 125°C and provide exceptionally low thermal resistance for optimal thermal management.By offering a range of diverse products to include LEDs in the visible to infrared spectrums, OSRAM Opto Semiconductors’ OSTAR family offers a vertically integrated solution for today’s automotive designers for applications inside and outside the vehicle.
