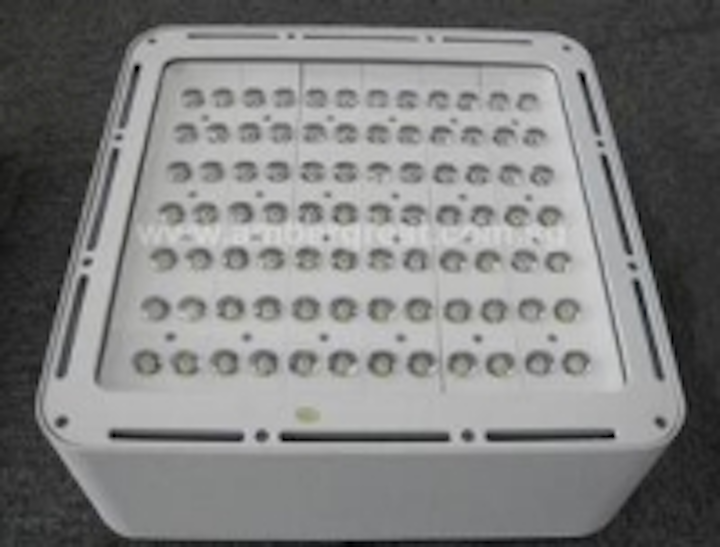

Date Announced: 09 Sep 2010 Features 1. Top light source-LED from CREE 2. Patented packing technology 3. Energy saving, environmentally friendly, long lifespan 4. Radiator made of Aluminium alloy which has the best heat conductivity 5. Applied with patented quadric optics non-imaginglens, luminaire efficiency over 90% 6. Powered at AC board voltage input with constant current drive 7. The lamp has been designed a respiratory system to ensure the dust resistance, water resistance and self cleaning ability 8. Integrated heat conduct panel with lamp body enabled the completed heat dissipation 9. New T3 optical lens reflects square light spot 10. Aesthetic style 11. National-wide various invention patents Application 1. Petrol station, canopy 2. Airport, supermarket, booth 3. Train station, lobby 4. Industry, shopping mall, indoor parking Spec detail Model No.: AG-PT-84T Input Voltage (VAC): AC 100~277V Frequency Range (HZ): 50~60Hz Power Factor (PF): >0.95 Total Harmonic Distortion: <15% Power Efficiency: 88% Working Voltage (VDC): DC 53V LED Consumption (W): 94 W with 84pcs CREE LED inside LED Luminous Efficiency: >90 lumens/w LED Initial Flux (LM): 8460 Lumens Lamp's Effciency (%): >90% Color Temperature: 4000~5500K Color Rendering Index (CRI): Ra>75 Light Distribution Curve/Beam Pattern: Asymmetric(Bat Wing)/Rectangular Beam Junction Temperature (Tj): <75' Working Enviornment: Temperature: -35'~65' Humidity: 10%~95% IP Rating: IP67 Working Life: >50000 hours Light Body & Lampshade Material: Aluminum Alloy Gross Weight(Kgs): 10.96 kgs Packaging Size (mm): 520(L)*440(W)*250(H) LED Chip: CREE Warrantee: 5 years
