Osram's SFH 7770 offers proximity and ambient light sensor in one compact unit

Nov. 2, 2010

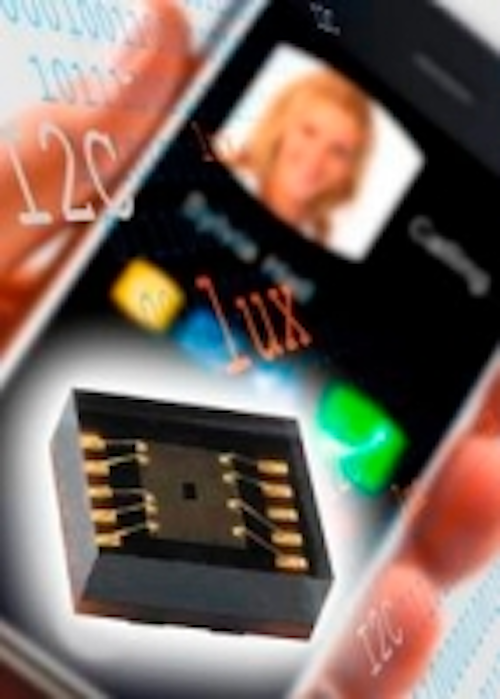

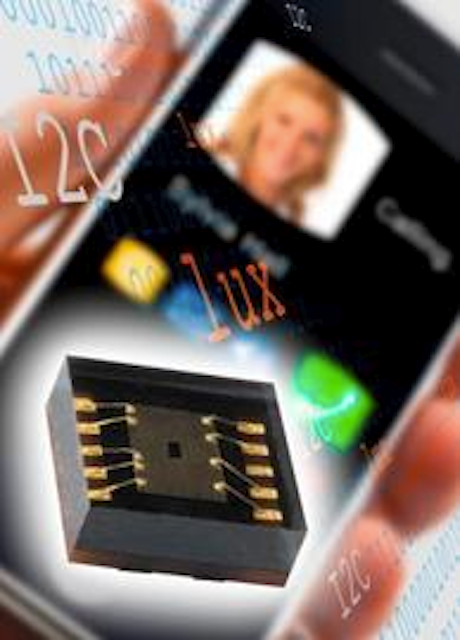

Date Announced: 02 Nov 2010 The SFH 7770 from OSRAM Opto Semiconductors combines the functions of a digital ambient light sensor with those of a digital proximity sensor. It determines the ambient brightness, detects the presence of an object nearby and can even tell whether the object is moving closer or moving further away. It means that applications in cell phones and smartphones for example can be controlled without touching the phone. Apps open like magic, and the brightness and volume are adjusted at precisely the right moment.The digital SFH 7770 sensor replaces the usual separate ambient light and proximity sensors and takes up very little space, measuring just 2.8 x 2.8 x 0.9 mm. At the same time by combining the two functions it offers added performance and consumes only 350 μA during operation and only 5 μA in stand-by mode.The proximity sensor uses the reflection of the emitted light from a separate IR LED not only to detect objects close to it but also to know whether the object is moving towards or away from it. Its high sensitivity in the range from 1 μW/cm² to 10 mW/cm² allows it to operate at large distances of up to 30 cm. With its digital output the sensor supports the high-speed I²C bus at up to 3.4 MHz.When it measures brightness the integrated ambient light sensor immediately returns a lux value of between 3 and 65,000 lx so that the display brightness can be adapted precisely to the ambient light conditions. This makes the display easier to read and increases the time between battery recharges. The sensor is also insensitive to mains-related 50-60 Hz fluctuations in the brightness of ambient light produced for example by fluorescent lamps.The digital double pack of proximity and ambient light sensor gives manufacturers of cell phones new freedom of design. Different functionalities can be achieved with just one component – depending on the phone it could be only the proximity function, only the ambient light function or both together. The board design and the number of manufacturing processes are the same in all cases.The cover design also benefits. “Thanks to the high sensitivity of the SFH 7770, the entire cover can now be made of colored plastic with only minimal loss of range for the sensor,” said Dr. Markus Foerste, Head of development in the Infrared business segment at OSRAM Opto Semiconductors. “There is no longer any need for transparent windows“.By using two further IR LEDs it is possible to detect gestures with the SFH 7770. The necessary hardware drivers are already integrated. The IR LEDs transmit light signals at a certain frequency. The sensor measures the reflections to detect horizontal and vertical movements. Gesture detection from such small components makes contactless control of applications possible even for very small cell phones and smartphones. You can flick through your photos without even touching the phone or disable an integrated touchpad to prevent starting an app unintentionally.OSRAM presents the SFH 7770 for the first time on electronica (9. to 12. November, München) at booth107 in hall A3. More information is available here www.osram-os.com/electronica2010.The SFH 7770 not only adjusts the brightness of cell phone displays to ambient conditions for improved readability and power savings, it also acts as a distance sensor in combination with an IR LED so applications can be controlled without touching the phone.ABOUT OSRAM OPTO SEMICONDUCTORSOSRAM is part of the Industry sector of Siemens and one of the two leading lighting manufacturers in the world. Its subsidiary, OSRAM Opto Semiconductors GmbH in Regensburg (Germany), offers its customers solutions based on semiconductor technology for lighting, sensor and visualization applications. OSRAM Opto Semiconductors has production sites in Regensburg (Germany) and Penang (Malaysia). Its headquarters for North America is in Sunnyvale (USA), and for Asia in Hong Kong. OSRAM Opto Semiconductors also has sales offices throughout the world.
