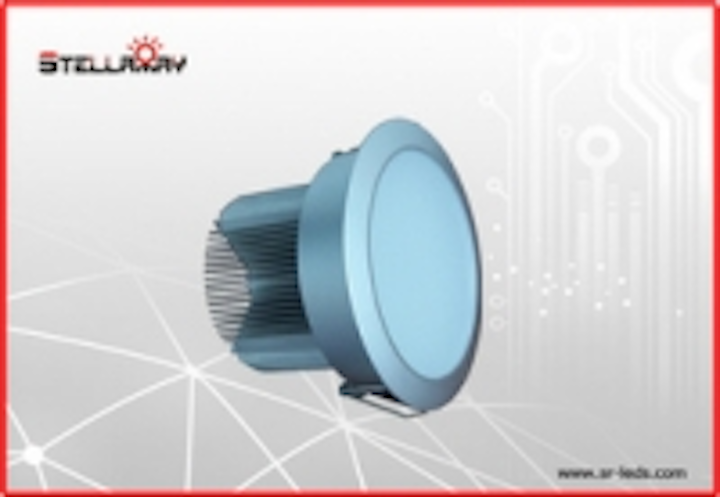

Stellaray 12W SMD LED downlight with 758 lm output and no glare

Content Dam Leds En Ugc 2010 11 Stellaray 12w Smd Led Downlight With 758 Lm Output And No Glare Leftcolumn Article Thumbnailimage File
28269 0 thumb Date Announced: 19 Nov 2010

Here comes a newly released 12W SMD LED Down Light with Back-lighting, 758lm output without glare, from Stellaray Technology Limited (, a professional manufacturer specialized in manufacturing and marketing of LED lightings. Details please refer as following:

12W Back-lighting LED Downlight Lamp

1. Using high lumen output SMD3528 and high quality optical material
2. Efficiency > 60LM/W, totally 758 lm above
3. Ra>75, Uniformity>80%.
4. Glare-free.
5. lifespan>50,000H.
6. No cost of maintenance and easy installation.
7. Energy Saving & Environmental Friendly.
8. Dimension: DIA132 * H64mm
9. Lighting Area: Φ120mm
10. Power consumption: 12W
11. Input Voltage: AC85~265V
12. Output Voltage: DC24~ DC28V
13. Lumen output: >758lm
14. Luminous (1m): 316 LUX
15. Uniformity >75%
16. Beam Angle: 120deg±10
17. CCT: 2700-6500k available
18. Material: aluminum alloy + optics acrylic
19. Protection level: IP40
20. Lifespan: >50000H (8 years)
21. Ra: >75
22. LED Style: SMD
23. Lighting way: Back-lighting

Application: Office, meeting room, shop, supermarket, showroom, recreation room, dinning room

Stellaray Technology Limited Tel: +86-755-26472400 Mobile: +86-13760215716 MSN: Skype: wsj.james E-mail: Web:
