California Micro Devices adds family of fractional charge pump LED drivers for wireless handsets

Content Dam Leds En Ugc 2006 05 California Micro Devices Adds Family Of Fractional Charge Pump Led Drivers For Wireless Handsets Leftcolumn Article Thumbnailimage File
12219 0 main Date Announced: 01 May 2006

California Micro Devices Adds Family of Fractional Charge Pump LED Drivers for Wireless Handsets
Enhanced PhotonIC Portfolio Delivers High Efficiency for Low Bills of Materials

MILPITAS, Calif., -- May 1, 2006 – California Micro Devices (NASDAQ: CAMD) today added a compelling and differentiated family of fractional charge pump WLED drivers to its PhotonIC™ family of white LED (WLED) drivers for wireless handset applications. With increased demand for brighter and larger resolution displays, powerful camera flash capabilities for multi-megapixel camera resolutions and various types of LEDs to support keypad backlight and multimedia capabilities, wireless handset designers have become increasingly concerned with the efficiency of the LED driver subsystem.

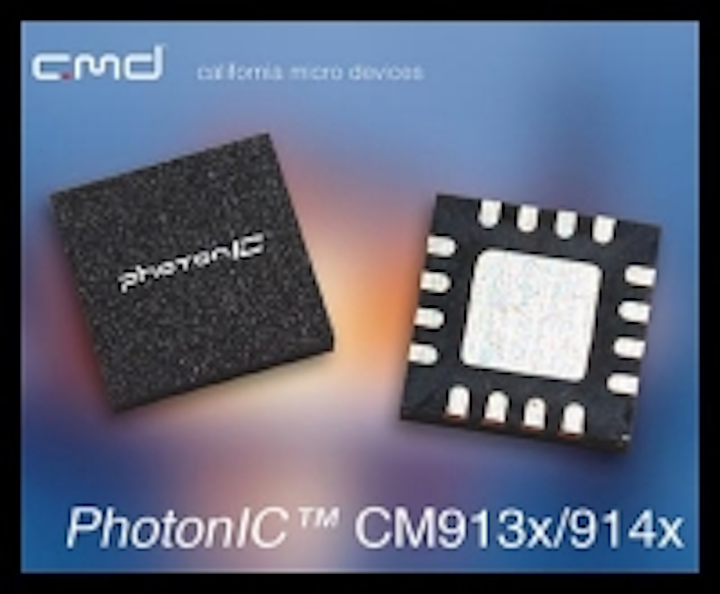

California Micro Devices’ PhotonIC™ family of white LED drivers now includes five current regulated fractional charge pump products (CM913x/4x) that can drive up to six WLEDs, as well as three voltage regulated products (CM915x). All these products feature a simple analog control interface as well as optimal efficiency in a compact footprint.

Current Regulated Products: CM913x/4x
The CM913x/4x family includes five fractional charge pump products described in the following table:

Product Driving Capabilities
CM9130 One group of 3 matched WLEDs
CM9132 One group of 3 matched WLEDs + One group of 2 matched WLEDs
CM9133 One group of 3 matched WLEDs + One group of 3 matched WLEDs
CM9140 One group of 4 matched WLEDs
CM9142 One group of 4 matched WLEDs + One group of 2 matched WLEDs

Products in the CM913x/4x family can operate with an input voltage ranging from 2.9V to 6V and in both 1x and 1.5x (fractional) modes in order to optimize efficiency. They are capable of driving up to 50mA on each output with 2 percent current matching and each output can be independently controlled through a PWM and analog interface. They require no external ballast resistor or inductor minimizing the footprint of the complete solution. Using this architecture also helps designers significantly reduce EMI (electromagnetic interference). They operate at a switching frequency of 500 kHz and feature overtemperature protection, overcurrent protection, a soft start feature to prevent excessive in rush current and low shutdown current. They are housed in a 4mm x 4mm QFP package. These products are ideal for driving display backlights as well as keypad or camera flash LEDs in the most efficient way in a compact footprint.

Voltage Regulated Products: CM915x
The CM915x family consists of three products described in the following table:

Product Driving Capabilities
CM9153 Up to 6 WLEDs – 650 kHz – DFN8 or MSOP8 packages
CM9156A Up to 6 WLEDs – 4 Selectable frequencies – DFN10 or MSOP10 packages
CM9156B Up to 6 WLEDs – 2 Selectable frequencies – DFN10 or MSOP10 packages

Products in the CM915x family feature a fixed output voltage of 4.5V with output ripple of less than 1percent and an accuracy of 2 percent. They can operate in both 1x and 1.5x (fractional) modes in order to optimize efficiency. The CM9156A and CM9156B offer selectable switching frequencies to allow further power savings reduction. The CM9153 is housed in compact DFN8 or MSOP8 packages, and the CM9156A and CM9156B are offered in either DFN10 or MSOP10 packages. They also feature overtemperature protection, overcurrent protection and soft start. The CM9156 is pin compatible with other products in the market but offers higher efficiency.

Application & Deliverables
Both product families are a perfect fit to drive backlight, keypad and camera flash LED sub systems in the most efficient way in a compact footprint and at the lowest bill of materials. Reference design kits are available to customers to allow rapid evaluation of the advantages and benefits of this product portfolio.

Pricing and Availability
All the products described are currently sampling and reference design kits are available. Pricing ranges from $0.60 to $1.20 in 1,000 units. Production is scheduled for Q2 2006.

About California Micro Devices Corporation
California Micro Devices Corporation is a leading supplier of application specific analog semiconductor products for mobile handset, personal computer and digital consumer electronics markets. Key products include Application Specific Integrated Passive (ASIP) devices and selected high value, mixed signal ICs. Detailed corporate and product information may be accessed at www.calmicro.com.

Application Specific Integrated Passive™, ASIP™ and PhotonICTM are trademarks of California Micro Devices. All other trademarks are property of their respective owners.
