Maxim 350 mA driver targets automotive, display and lighting applications

Content Dam Leds En Ugc 2006 05 Maxim 350 Ma Driver Targets Automotive Display And Lighting Applications Leftcolumn Article Thumbnailimage File
12264 0 main Date Announced: 08 May 2006

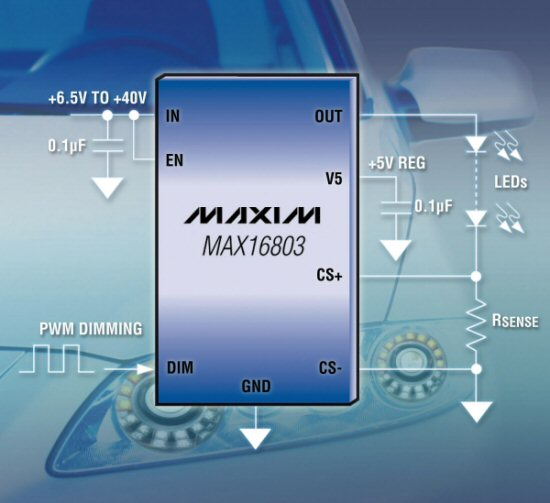

High-Voltage, 350mA, High-Brightness LED Driver with PWM Dimming and 5V Regulator for Automotive, Display, and Lighting Applications

SUNNYVALE, CA-May 4, 2006-Maxim Integrated Products (NASDAQ: MXIM) introduces the MAX16803, an adjustable constant current source that provides up to 350mA of current to one or more strings of high-brightness LEDs (HBLEDs). A wide operating input-voltage range of 6.5V to 40V helps protect against large transients such as load-dump and cold cranking. Its high-voltage (40V) PWM pin allows a wide dimming range. The MAX16803 is ideal for automotive lighting, LED display backlight, industrial and architectural lighting applications.

The MAX16803 regulator combines a low-voltage (204mV) current-sense reference with differential LED current sensing to provide load accuracy of ±3.5%. This current accuracy allows consistent brightness for all light assemblies. The device's low-dropout pass element (0.5V typical) and current-sense reference minimizes power dissipation in the system. Multiple MAX16803 LED driver ICs can be paralleled to deliver current greater than 350mA to a single high-power LED.

Brightness can be adjusted by using output PWM dimming in which the dedicated dimming input (DIM) or VIN is pulsed. Wave-shaped circuitry generates soft rise and fall LED current edges of equal duration, and reduces EMI during short turn-on and turn-off transitions.

A fixed, 5V output regulator delivers up to 4mA of load current for low-power applications throughout the 6.5V to 40V input-voltage range. For greater design flexibility, the regulator can also power a microcontroller or other external components. The regulator stays on even when DIM is pulled low. Two small ceramic capacitors and a small sense resistor result in a minimal board size and minimize total driver cost.

The MAX16803 is rated for operation over the automotive temperature range (-40 degrees Celsius to +125 degrees Celsius). It features thermal and short-circuit protection. The device is available in a thermally enhanced, surface-mount, 5mm x 5mm, 16-pin TQFN package rated at 2.67W power dissipation. It is also available in a lead-free package. Prices start at $0.99 (1000-up, FOB USA).

###

DATA SHEET: A Data Sheet for this product is available on the web.
http://www.maxim-ic.com/PRGraphics/PRPDF/MAX16803DS.pdf

Contact
Brian Hedayati

E-mail:brian_hedayati@maximhq.com

Web Site:www.maxim-ic.com/ledmag
