AnalogicTech announces unprecedented integration of LED display drivers

Content Dam Leds En Ugc 2006 11 Analogictech Announces Unprecedented Integration Of Led Display Drivers Leftcolumn Article Thumbnailimage File
14209 0 thumb Date Announced: 14 Nov 2006

Total Display Solution Delivers LED Backlight, Camera Flash, and RGB/ Status Lighting in Single Chip

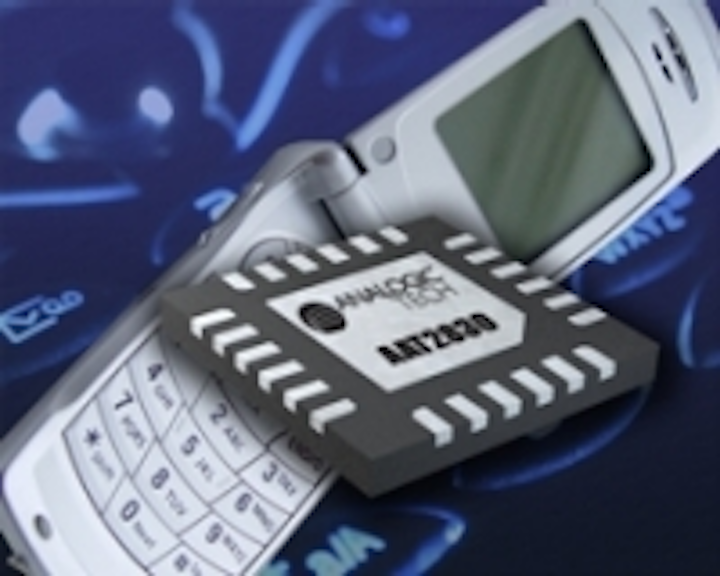

Sunnyvale, CA – Advanced Analogic Technologies Incorporated (AnalogicTech) (Nasdaq: AATI), a developer of power management semiconductors for mobile consumer electronic devices, announced at the Electronica Trade Show today the AAT2830/31, a highly integrated Total Display Solution for handsets and other portable systems operating off a single-cell Li-ion battery.

Built around a high efficiency, tri-mode charge pump, the new device delivers up to 600 mA of current for the growing array of lighting applications in today’s portable systems including main and sub display backlighting, camera flash, and RGB or auxiliary status lighting. Individual driving circuits for each function are controlled by AnalogicTech’s patented, single wire AS2Cwire™ (Advanced Simple Serial Control) serial digital interface.

“As handset and portable system designers expand their use of lighting functions to include main and subpanel backlights, camera flash with movie-mode capability, RGB status and keypad backlighting, any discrete implementation of these subsystems conflicts directly with the need to minimize system footprint,” said Adolfo Garcia, Product Line Director for AnalogicTech.

“By combining a high performance charge pump and backlight, flash and RGB drivers into a single 4 x 4-mm IC controllable by a serial interface, the AAT2830/31 reduces parts count and system footprint while offering designers an exceptionally high level of configurability.”

Individual Channel Control
The AAT2830/31 drives up to six outputs programmable up to 30 mA each via an external resistor for LED backlight applications. Individual control of each channel allows designers to drive four LEDs for a main display and two for a sub panel, or all six for a single display. LED intensity can be set to any of 16 levels using the AS2Cwire™ serial interface.

For camera flash functions, the AAT2830/31 supplies up to 600 mA of current through four individual channels programmable up to 150 mA each. In addition, the AAT2830/31 supports both flashlight and movie-mode operations. Three auxiliary outputs can be adjusted to handle up to 60 mA for color RGB, keypad, or status lighting applications. The AAT2830/31’s high efficiency tri-mode charge pump provides enough power to operate all three types of LED functions - backlight, flash and RGB - simultaneously.

All settings for backlight, flash and RGB lighting are programmable via AnalogicTech’s AS2Cwire interface. Color RGB drivers on the AAT2830 can be programmed into up to 4096 color/keypad intensity settings. For portable devices using smaller-scale displays, the AAT2831 offers RGB drivers programmable to 64-color/keypad intensity combinations.

To protect the LEDs from thermal damage, the AAT2830/31 also features an integrated Flash timer, which limits the maximum amount of time the LEDs can be illuminated. This unique feature also helps minimize battery drain during flash operations.

Price and availability
Specified over the -40º C to +85º C temperature range, the AAT2830/31 will be sampling in December 2006 and will be available in a Pb-free, thermally-enhanced, 24-pin QFN44 package. Budgetary pricing will be $1.96 in 1000-unit quantities .
