Small multicolor LED from Osram enables brilliant colors with excellent contrast

Content Dam Leds En Ugc 2009 05 Small Multicolor Led From Osram Enables Brilliant Colors With Excellent Contrast Leftcolumn Article Thumbnailimage File
18667 0 thumb Date Announced: 15 May 2009

OSRAM Opto Semiconductors has developed the smallest member of the RGB Multi ChipLED family to bring a new dimension of high-definition picture quality to large full-color video screens. The Multi ChipLED enables high-resolution full-color video screens – for example, in television studios, modern conference rooms, trade fairs and concert halls – to offer brilliant colors and high contrast from all viewing angles. The tiny dimensions of this Multi ChipLED allow a very large number of pixels to be accommodated in a small display area. Housed in a black package that is mostly impervious to ambient light, the LED emits light in brilliant colors with excellent contrast.

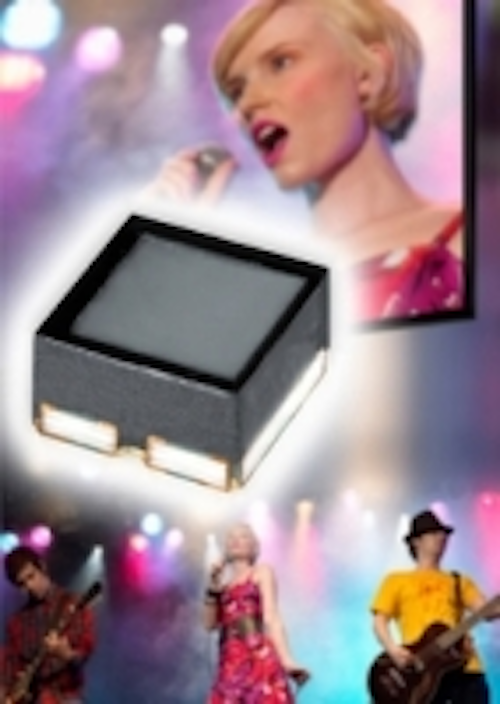

OSRAM’s RGB Multi ChipLEDs are housed in a miniature package with dimensions of only 1.6 mm x 1.6 mm and measure just 0.9 mm high. With the RGB Multi ChipLED, it is possible to have a pixel spacing of only 2 mm, meaning that a great many pixels can be generated in a very small area. For example, an area of less than 10 m² is sufficient to display pictures in HDTV quality and accommodate more than 2 million pixels. A 2.5 x 4.0 m (98” x 157”) display 10 m (394”) in diagonal can achieve a system luminance of 1500-2500 cd/m², corresponding to around ten times the luminance of a conventional LED-backlit TFT LCD screen.

Perfect color mixing takes place in the Multi ChipLED package itself thanks to the specially developed encapsulation material. Color appearance remains constant across the entire viewing angle, and the picture appears vibrant even when viewed off-axis. The beam angle of the LED is +/- 60°. Ambient light cannot ruin the picture quality because it is barely reflected at all by the black package in which the LED is housed.

Inside the Multi ChipLED, there is a red chip, blue chip and a green chip fabricated using OSRAM’s ThinFilm and ThinGaN technology. If the RGB-LED is operated with a current of 20 mA, the individual chips produce typical luminous intensities of 250 mcd (red), 350 mcd (green) and 70 mcd (blue). The typical efficiency of this luminous intensity is 4 cd/W, which corresponds to a luminous efficacy of 12 lm/W.

For more information, please contact OSRAM Opto Semiconductors at info@osram-os.com or call
888-446-7726.

ABOUT OSRAM OPTO SEMICONDUCTORS
OSRAM is part of the Industry sector of Siemens and one of the two leading lighting manufacturers in the world. Its subsidiary, OSRAM Opto Semiconductors GmbH in Regensburg (Germany), offers its customers solutions based on semiconductor technology for lighting, sensor and visualization applications. OSRAM Opto Semiconductors has production sites in Regensburg (Germany) and Penang (Malaysia). Its headquarters for North America is in Sunnyvale (USA), and for Asia in Hong Kong. OSRAM Opto Semiconductors also has sales offices throughout the world. In the 2008 fiscal year (to the end of September) OSRAM Opto Semiconductors employed more than 4600 people and achieved sales totaling 529 million euros.

Contact
Kate Cleveland OSRAM Opto Semiconductors (248) 277-8018 Bill Maurer Macrovision, Inc. (215) 348-1010

E-mail:kate.cleveland@osram-os.com

Web Site:www.osram-os.com
