New OSRAM Stack DRAGON doubles IR LED power in a compact package

Oct. 8, 2009

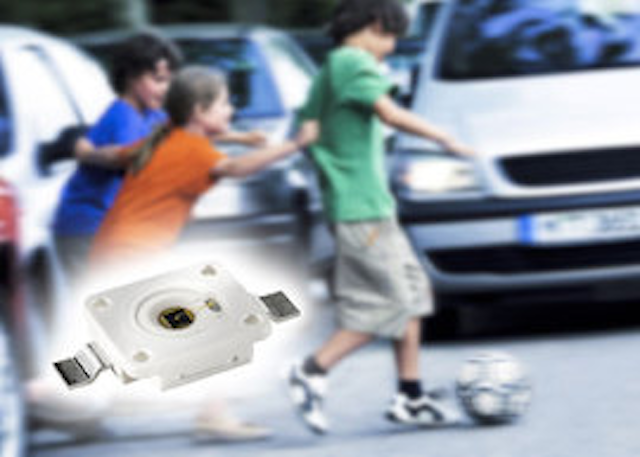

Date Announced: 08 Oct 2009 Infrared Platinum Stack DRAGON LEDs feature chip-in-stack technologyThe new infrared Platinum Stack DRAGON from OSRAM Opto Semiconductors provides high optical output from a small surface area, creating an ideal high-radiance solution for automotive, industrial and consumer applications where space is limited. Its 1 mm² ThinFilm chip-in-stack technology enables it to generate an optical output of nearly 1 W from a driving current of 1 A – almost twice the output of the standard chips that have been used up to now. The viewing angle and radiant intensity can be varied with standard secondary optics. Preferred applications are those that require high radiance so that small optics can be used. Night vision systems, sensor-based electronic pedestrian protection systems and pre-crash sensors in vehicles can be made much more compact because fewer IR LEDs are needed to provide the same optical output. In industrial applications, these high-power IR LEDs can be used in illumination units for CCTV cameras or in systems for automatic number plate recognition (ANPR). The increased output of the new infrared Platinum Stack DRAGON is based on a special ThinFilm chip. It has not one, but two p-n junctions that have been grown or “stacked” one on top of the other. This stack technology achieves almost twice the optical output power compared to conventional IR ThinFilm chips. “We were able to bring the infrared Platinum Stack DRAGON to market quickly thanks to our experience in developing the stack technology for our lasers,” said Harry Feltges, Marketing Manager for Infrared Components at OSRAM Opto Semiconductors. “Its package is the same as the one used for the other IR DRAGON components, so existing designs can be used without modification.” The forward voltage of 2.9 V at 1A enables standard LED drivers that operate in this voltage range to be used. The IR LED emits at a wavelength of 850 nm and is a perfect compromise between maximum spectral sensitivity for CCD and CMOS cameras and suppressed visibility for the human eye.Another possible application for the infrared Platinum Stack DRAGON is 3-D camera technology, which will be used more and more in consumer devices such as gaming consoles and TVs for gesture recognition. The high modulation frequencies of the light source (typically 20 to 50 MHz) required for these applications can be easily achieved with the new Stack DRAGON.For more information, please contact OSRAM Opto Semiconductors at [email protected] or call 866-993-5211.Picture: Thanks to its high radiance from a small surface, the infrared Platinum Stack DRAGON gives access to the next level of optical output performance and opens up new applications in automotive, industrial and 3-D camera technology.ABOUT OSRAM OPTO SEMICONDUCTORSOSRAM is part of the Industry sector of Siemens and one of the two leading lighting manufacturers in the world. Its subsidiary, OSRAM Opto Semiconductors GmbH in Regensburg (Germany), offers its customers solutions based on semiconductor technology for lighting, sensor and visualization applications. OSRAM Opto Semiconductors has production sites in Regensburg (Germany) and Penang (Malaysia). Its headquarters for North America is in Sunnyvale, CA (USA), and for Asia in Hong Kong. OSRAM Opto Semiconductors also has sales offices throughout the world. In the 2008 fiscal year (to the end of September) OSRAM Opto Semiconductors employed more than 4600 people and achieved sales totaling 529 million euros. For more information go to
