Aimtec drivers with up to 1.2A output current and high efficiency of 96%

Content Dam Leds En Ugc 2009 06 Aimtec Drivers With Up To 1 2a Output Current And High Efficiency Of 96 Leftcolumn Article Thumbnailimage File
18885 0 thumb Date Announced: 12 Jun 2009

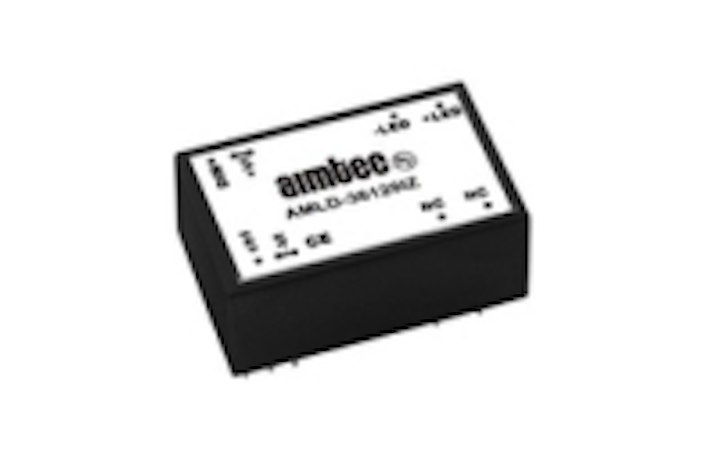

Aimtec expands its AMLD-IZ series of step-down DC-DC LED drivers with five new models generating constant output currents reaching 1.2A.

With wide input ranges of 5-36VDC that step-down to wide output ranges 2-32VDC, the new models in the AMLD-IZ series generate constant output currents of 800mA, 900mA, 1,000mA, 1,100mA, 1,200mA with an accuracy of up to ±2%, ensuring the constant color and brightness that is required by today's most demanding LED applications.

Producing up to 38.4 watts of power in a compact DIP24 package (31.80 × 20.30 × 10.20 mm), the AMLD-IZ series features include remote ON/OFF control function as well as PWM and analog voltage dimming control (0 - 100%).

Boasting efficiencies of 96%, Aimtec's LED drivers are designed to be as reliable as the LEDs they drive, allowing them to be used at an operating temperature of -40oC to +85oC at full load.

Compatible with a wide range of LEDs applications, all of Aimtec's LED drivers provide turn key solutions that require no external components, for easy integration into a multitude of LED lighting applications, including single unit or arrays of LEDs designs.

RoHS compliant, the entire AMLD-IZ series offers excellent quality/cost value and is competitively priced starting at $19.36/1000+ pieces. Samples are available from stock and can be ordered immediately.

For more product information, including the location of your regional distributor, visit or email

Aimtec Inc. Louise Cote 3883 St. Jean Blvd D.D.O., QC H9G 3B9 Canada Tel: 1-514-620-2722
