Sharp expands its portfolio with even brighter LED arrays

Content Dam Leds En Ugc 2012 04 Sharp Expands Its Portfolio With Even Brighter Led Arrays Leftcolumn Article Thumbnailimage File
34748 0 thumb Date Announced: 11 Apr 2012

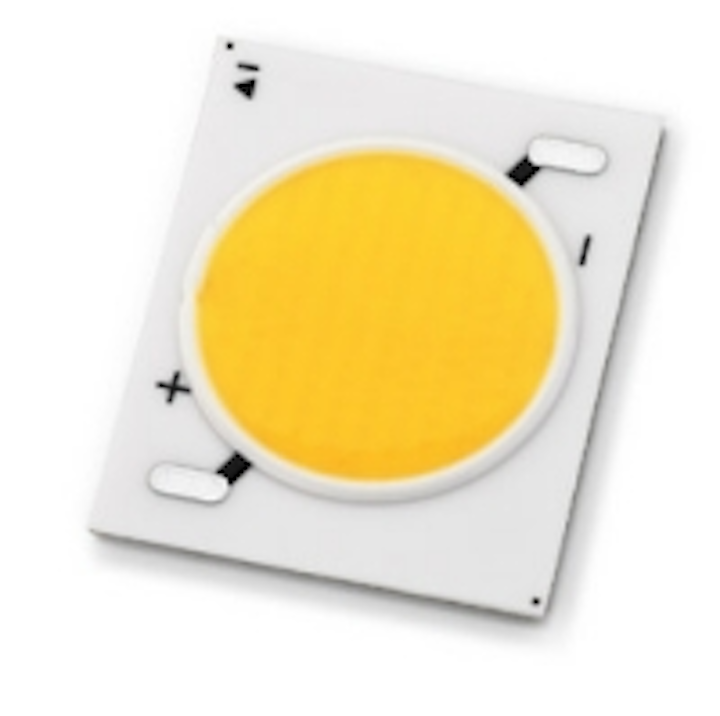

The new LED modules from the new Mega Zeni series from Sharp radiate with an efficiency of up to 100 lm/W, a luminous flux of up to 4770 lm and are available with a (typical) CRI value of up to 93. They are thus one of the first industrial LED solutions to replace traditional 50W HID lamps.

Hamburg, 11 April 2012 – The 50W Mega Zeni models from Sharp maintain the same compact dimensions and high CRI values, yet with considerably greater luminous fluxes. These have a luminous efficiency of up to 100 lm/W, a light output of between 3590 and 4770 lm in standard operating mode and a long service life of 40,000 hours at an operating temperature of up to 90°C. The new Mega Zeni modules are designed for a forward voltage of 50V and a forward current of 950 mA, but can also be operated with a standard power source of 1050mA. Other important features include: R9 values of over 85 with CRI values of over 90, MacAdam 3-step Ellipse binning, as well as good colour consistency and colour sta-bility values over time under realistic operating conditions (hot lumen).
The 50W LED array launched by Sharp can thus replace traditional HID lamps in the same performance class. Compared to halogen lamps, the service life of 40,000 h of the LED array is notably longer and has a much lower decrease in brightness over time.
The serial and parallel array of the LED matrix ensures fail-proof operation while offering the lowest possible thermal emission. The flat surface of the ceramic plate and the soldering points already in place make it possible to attach the modules to a suitable heat sink without too much effort or additional connecting material, thus guaranteeing excellent heat dissipa-tion. The electrical wiring also leads to lower thermal stress of the single LEDs, because the heat is evenly distributed and dissipated across the entire surface of the matrix. The round light emitting surface (LES) consists of a total of 160 LEDs, sub-divided into ten parallel-connected rows of sixteen. In the Mega Zeni series, this LES is fitted evenly with LEDs up to the edge, through which the optical design of a lamp can be considerably simplified. The formation of multiple shadows can be avoided, and at the same time it is easier to focus the optics (lens, reflector) on just one light emitting surface. The slim design of the new Mega Zeni, measuring just 24 x 20 x 1.8 millimetres, together with its small LES, also increases de-sign flexibility, as it is possible to produce smaller optics and ultimately smaller lamps.
The colour temperature of the new white light LED lighting components ranges from 2700 to 4000 Kelvin. The CRI values and colour temperatures of the Mega Zeni LED modules corre-spond to the requirements of the international Energy Star programme. They can be used in new LED lighting systems as well as in places where traditional light sources were previously used.
Altogether, the new 50W Mega Zeni LED arrays are characterised by a high quality of light and high performance in a compact form. This makes them suitable for illumination of both streets and objects, as well as for indoor applications that include spot lighting and recessed ceiling light fixtures, etc.

Availability
Initial samples are available with colour temperatures of 3000 and 4000K. These can now be ordered from Sharp sales offices and distribution partners across Europe.

Contact
Sharp Microelectronics Europe Service hotline: +49 (0)180 507 35 07 (EUR 0.14/min. from the landline network of DTAG.) Light + Building Hall 4.2, booth J71

E-mail:info.sme@sharp.eu

Web Site:www.sharpleds.eu
