Khatod Optoelectronic unveils the widest range of reflectors for LED applications

Content Dam Leds En Ugc 2012 07 Khatod Optoelectronic Unveils The Widest Range Of Reflectors For Led Applications Leftcolumn Article Thumbnailimage File
35982 0 thumb Date Announced: 09 Jul 2012

Made of aluminum coated PC with clear protective lacquer, the newest REFLECTORS from Khatod boast an excellent optical efficiency based on our exclusive VACUUM COATING TREATMENT PLANT, custom-designed for the specific optical treatments of our Reflector Systems for LED applications. The variety of REFLECTORS offered by Khatod is one of the most comprehensive on the market, and that’s not all! They also offer the great opportunity to customize your end application: modular arrays as well as modular multi-reflectors realized in diverse configurations allow to shape your lighting structure as you desire.

LYRA OPTICAL SYSTEMS for COB LEDs

• Made of aluminum coated special PCHT with a protective lacquer, boast an excellent optical efficiency • Specific for HB COB LEDs • High performance with warm white LEDs • Yellow ring effect totally eliminated • Maximize the luminous flux while achieving a lighting efficiency over 85% • No vibration problems • Easy fixing to the COB LEDs • UV protected and guaranteed for outdoor applications • Any applications in Wide Area Lighting: Industrial Lighting; Indoor Lighting; Outdoor Lighting; Architectural lighting • Complying with Zhaga Standards • Complying with UL94 Specifications • Patent pending

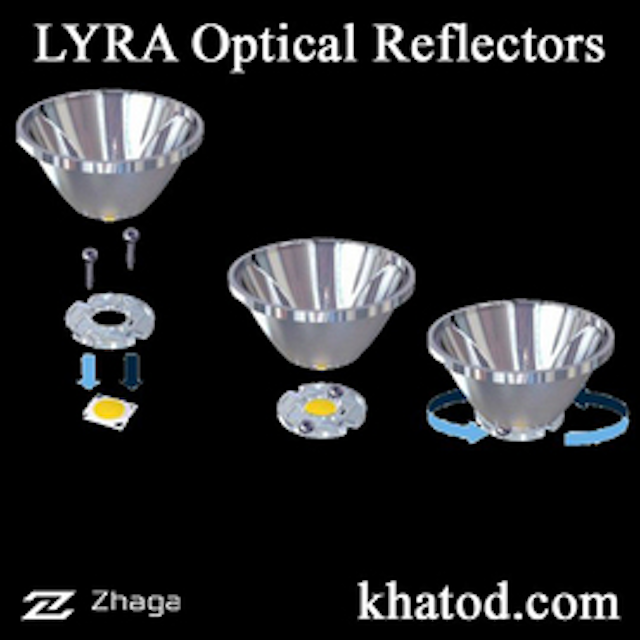

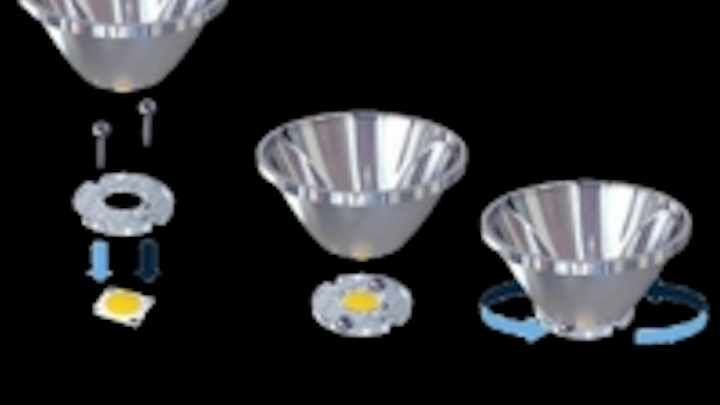

This new series of reflectors from Khatod are provided with a special adaptor, customized for the individual models of COB LEDs, allowing an immediate easy assembling of the reflector by a simple twist & lock block system: first the adaptor is fixed onto the PCB while the reflector is then fixed by simply twisting and locking it onto the adaptor.
http://www.khatod.com/cms/optical_reflector_system___lyra__optical_systems_for_cob_leds-4328548.html

ROUND REFLECTORS for HB and COB LEDs

• Specific for High Brightness LEDs and COB LEDs • Available in a great variety of dimensions and in different finishings • Available in 2 different Beams: Narrow Beam (CR version) and Medium Beam (ST version) • Made of aluminum coated special PCHT with a protective lacquer • High Uniformity • Maximize the luminous flux while achieving a lighting efficiency over 85% • No vibration problems • Applications: Wall Washer; Accent Lighting; Torches; Any applications in Wide Area Lighting: Industrial Lighting; Indoor Lighting; Outdoor Lighting; Architectural lighting • Complying with UL94 Specifications • Patent pending•

MULTI-ROUND REFLECTORS based on MODULAR SYSTEMS in DIVERSE CONFIGURATIONS

• Modular system made of a holder provided with holes able to accommodate diverse reflectors specific for HB and COB LEDs • Holders: diverse configurations for the housing of 1 to 3-4-7-9-12 reflectors of 80°. Holder+Reflectors modules offer a “plug-and-play” functionality, ready for use within seconds • Available in a variety of dimensions and finishings • Made of aluminum coated PC with a protective lacquer • High Uniformity • Maximize the luminous flux while achieving a lighting efficiency over 85% • No vibration problems • Any applications in General LED Lighting: Wall Washer; Accent Lighting; Torches • Applications where a compact light source is required • Complying with UL94 Specifications •

ROUND REFLECTORS for POWER LEDs

• Available in 2 different Beams: Narrow Beam (CR version) and Medium Beam (ST version) • Available in a variety of dimensions and in different finishings • Standard 17mm Ø and 20mm Ø • High efficiency •
• No vibration problems • Typical applications: Portable lighting (flashlights, bicycle….); Lamps • Architectural lighting; Applications where a compact light source is required • Complying with UL94 Specifications •

SQUARE BEAM REFLECTORS for INDIVIDUAL or MODULAR USE

• Special Reflectors realized in rectangular and square shapes, all performing a particular Square Light Spot • High Uniformity • Net Cut-Off • Special design allowing for a dual option: can be used either INDIVIDUALLY or in MODULAR CONFIGURATIONS • Available in different finishings • Made of aluminum coated PC with a protective lacquer • Maximize the luminous flux while achieving a lighting efficiency over 85% •
• No vibration problems • Applications in General LED Lighting: Wall Washer; Accent Lighting; Applications where a compact light source is required • Complying with UL94 Specifications •

PIXEL OPTICAL REFLECTOR SYSTEM for HIGH BRIGHTNESS LEDs

• Ready-to-use multi-reflectors arrays, from 12 to 24 – 36 – 48 -60 square reflectors • Positioning pegs allow for a Dual Option: easy fixing onto the PCB - or - by removing them from one side, the arrays can be combined together obtaining linear or extensive structures of desired dimensions • Fit for HB LEDs from 100 to 600 lumens and over • Typical square beam • Made of aluminum coated PC with a protective lacquer • High performance with warm white LEDs • Yellow ring totally eliminated • High lighting efficiency • Excellent luminous flux • No vibration problems • Any applications in Wide Area Lighting, Indoor and Outdoor: Industrial Lighting, Street Lighting, Architectural Lighting, Billbord Lighting • Complying with UL94 Specifications • Patent pending•

SQUARE REFLECTORS for POWER LEDs

•Available in a variety of beams, shapes and dimensions • Square Spot • High Uniformity • High efficiency • No vibration problems • Typical applications : Linear Lights; Lamps; Ceiling Fixtures; Architectural Lighting; applications where a compact light source is required • Complying with UL94 Specifications •

DARK LENS for POWER LEDs

• Anti-glare faceted reflector, 30° beam, MR16, 50 mm Ø, for any Lambertian LED up to 8mm Ø dome •
• Homogeneous flux • High efficiency • High performance with warm white LEDs • Operation mode: with 1 – 2 – 3 and 4 LEDs ( min. 100 lm/W each), or with multichip LEDs • Made of new special PC for high performance coating • Innovative design • No vibration problems • Typical applications : Uplighting / Downlighting ; applications with LEDs in narrow or recessed spaces, or with LEDs in diverse configurations • Applications where a compact light is required • Complying with UL94 Specifications • Patent pending•

About Khatod Optoelectronic:
Khatod lenses have made the mark in the LED Industry for over 25 years.
Now more than ever, Khatod is investing its best engineering and economical efforts in new projects including not only innovative products but also the development of cutting-edge technologies customized by Khatod Engineering, in order to realize high technical optics for the most advanced specifications of the LED Industry. Unique on the international scene, Khatod holds all of its operations in house (Milano, Italy): a complete service that combines all of the manufacturing processes, from initial design to time to market. Khatod offers innovative Optical Systems for any application in WAL, a wide range of high technical optics for SSL applications, a proven capability to develop custom optics and a huge choice of optoelectronic components.

Contact
Via Monfalcone, 41- 20092 Cinisello B. (Milano) – ITALY Tel: +39 02 66013695 Fax: +39 02 66013500

E-mail:khatod@khatod.com

Web Site:www.khatod.com
