HTI’s modular 450W LED flood light / high mast light ready for projects

June 5, 2012

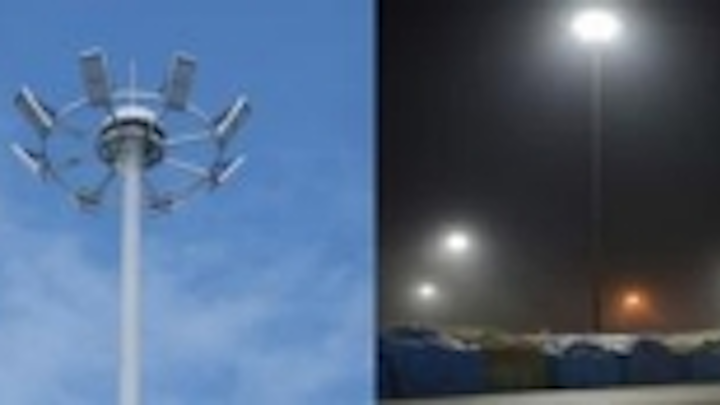

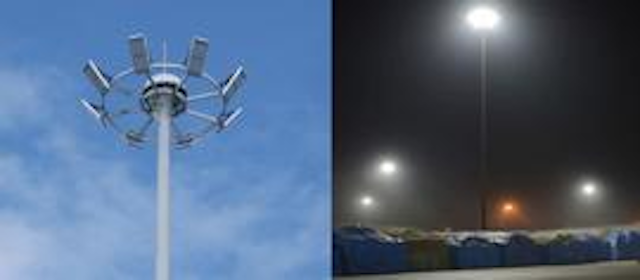

Date Announced: 05 Jun 2012 Recently HTI’s Bright Star Series LED Flood Light / High Mast Lights of 6 modules with 30 LEDs in each module, totally 180 LEDs at output power 450W successfully installed and got approval in one of its North China projects. This model of HTI-BS-FL6M30 was installed at 35 meters high to replace 1500W Metal Halide lamp. Equipped with super bright Cree LEDs of 130~139 Lm/W, the model outputs ultra bright illumination as the picture shows.Specifications:LED Chip: CreeDriver: Mean WellInput Voltage: AC 90~277 VFrequency Range: 50~60 HzWorking Voltage: DC 36 VLED Luminous Efficiency: ≥ 130 Lm/WLamp Luminous Efficiency: ≥ 80 Lm/WPower Efficiency: ≥ 88%PF (Power Factor): ≥ 0.95CRI (Color Rendering Index): ≥ 75 RaCCT (Color Temperature): 2700~6500 KLight Distribution Curve (Beam Pattern): RectangleBeam Angle: 120°* 60°Working Temperature: -40℃~50℃Working Humidity: 10%~90%Materials: Aluminum AlloyIP Rating: IP65Lifespan: > 50,000 HoursWarranty: 5 years for the whole lampIES files are available for Dialux simulationsApplications:1. Highways.2. Parking Lots.3. Airports.4. Tunnels.5. Stadiums.6. Squares.7. Warehouses.In this Bright Star Series LED Flood Lights, HTI has a full range of models from 36W to 450W, please contact us for details.

Jack Manager, Global Business Dept. Shenzhen Hitec Lighting Co., Ltd Mob: +86-153 0755 7255 T/F : +86-755 2314 8006

E-mail:[email protected]
