SunLED launches new 1206 domed right angle SMD LED

Content Dam Leds En Ugc 2012 11 Sunled Launches New 1206 Domed Right Angle Smd Led Leftcolumn Article Thumbnailimage File
36978 0 thumb Date Announced: 13 Nov 2012

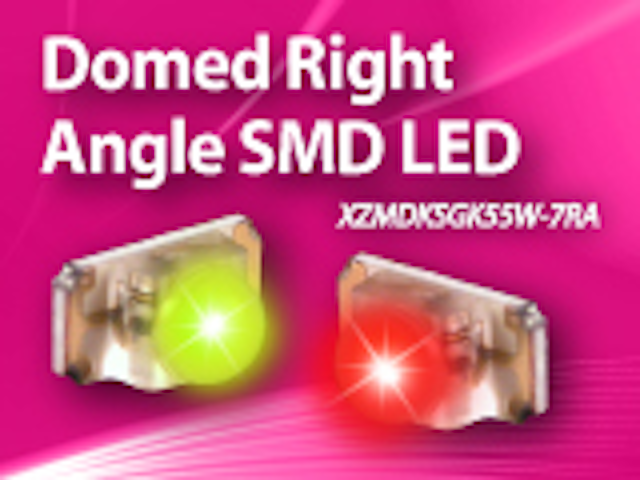

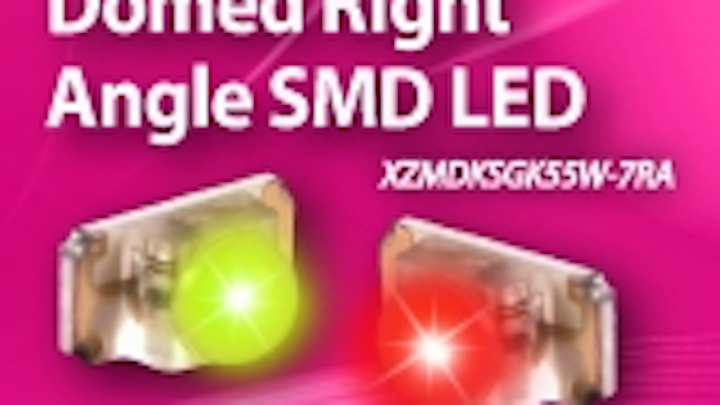

SunLED reveals a new right angle package; 1206 domed, bi-polar Red & Green LED. The traditional domed 1206 package is now available in a right angle version. The domed lens package provides a narrow viewing angle of 30 degrees which allows a brighter intensity output and eliminates any light bleeding issues. Typical issues with side fire LEDs when designed on arrays are light bleeding, overshadowing or dim light outputs. These issues can be resolved by using this new domed package. Red & Green dies/chips are proportionally mounted in the center under the encapsulated domed epoxy lens allowing uniform light output for both colors and achieving the maximum intensity possible. This 3.2x1.6 package is excellent for network devices, consumer electronics, medical equipment, hand held products and icon/text indications.

Product Features

•3.2x1.6mm package size
•Domed right angle LED
•Lens protrusion: 1.8mm
•Moisture Sensitivity Level (MSL): 3
•Bi-Polar configuration

Product Applications

•Consumer Electronics
•Network Devices
•Medical Equipment
•Hand held Products
•Icon/Text Indicator

Contact
SunLED Corporation 4010 Valley Blvd. #100 Walnut, CA 91789-0935 TEL: 909-594-6000 FAX: 909-594-6008

E-mail:sales@SunLEDusa.com

Web Site: www.SunLEDusa.com
