Khatod's Lyra optical systems for COB LEDs

Jan. 14, 2012

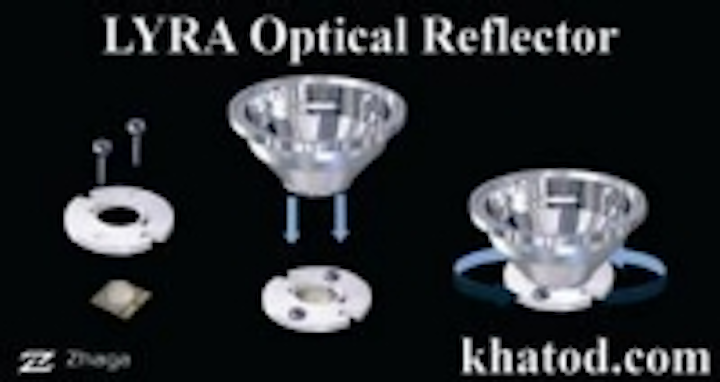

Date Announced: 14 Jan 2012 Lyra Optical Reflector Systems from Khatod provide the designers of lighting fixtures the broadest selection of optical solutions, by offering a real “Can do” opportunity in the most advanced projects using the High Brightness COB LEDs of latest generation.The LYRA Collection was introduced on the market only few months ago, and the request from the market for these reflector systems is impressively growing day by day. Thanks to their compact casing, the high luminous flux delivered by these powerful COB LED modules achieves very high intensities. Therefore, the most proper optical system is essential to maximize the luminous flux output. The optical system as well as the technology to realize it, is a question of primary importance and requires great expertise in optical design as well as the development of new technologies. Khatod, real innovator in optical systems, boasts such capabilities and delivers the most advanced solutions for the ever-evolving requirements from the LED Industry.The huge range of LYRA reflectors is available in 2 main macro-families, offering models of 65mm and 90mm in diameter. Each one of these macro-families comprises reflectors either with metalized or embossed finish, enabling to select the most proper reflector depending on the LED source you are using in your application. Each model delivers a wide range of beams, from narrow to medium, wide and super-wide angles, generated by the different geometries of the inner surface of each single model. LYRA Reflectors are provided with special adaptors, customized for the individual models of the major HB COB LEDs. The adaptors allow for the interchangeability of the LYRA reflector models on the same LED source. The assembly method is unique and easy to use. No soldering or gluing is required. They allow immediate easy assembling of the reflector onto the COB LED by a simple twist & lock system. The concept is very simple: a) fasten the adaptor onto the PCB with two screws; b) twist & lock the reflector onto the adaptor by a simple rotation. LYRA Optical Reflectors are in compliance with Standards and fit most of the applications where COB LEDs are required. LYRA reflectors boast the latest in technology and the highest in quality. Made of special PCHT, aluminum coated, protective layer, they deliver an excellent optical efficiency based on our exclusive VACUUM COATING TREATMENT PLANT, custom-engineered for the specific optical treatments of khatod Reflector Systems for LED applications. LYRA Reflectors definitely simplify lighting designs by reducing the time to development as well as the time to market.The full range of LYRA Optical Reflector Systems can be viewed on-line at: and Typical Applications:• Made of special PCHT, aluminum coated, protective layer, boast an excellent optical efficiency • Specific for HB COB LEDs • High performance with warm white LEDs • Yellow ring effect totally eliminated • Maximize the luminous flux while achieving a lighting efficiency over 85% • No vibration problems • Easy fixing to the COB LEDs • UV protected and guaranteed for outdoor applications • Any applications in Wide Area Lighting: Industrial Lighting; Indoor Lighting; Outdoor Lighting; Architectural lighting • Complying with Zhaga standards • Complying with UL94 Specifications • Patent pending•Copying from Khatod is not difficult, it’s just impossible!About Khatod Optoelectronic:Khatod lenses have made the mark in the LED Industry for over 25 years. Now more than ever, Khatod is investing its best engineering and economical efforts in new projects including not only innovative products but also the development of cutting-edge technologies customized by Khatod’s engineers, in order to realize high technical optics for the most advanced specifications of the LED Industry. Unique on the international scene, Khatod holds all of its operations in house, Milano, Italy: a complete service that combines all of the manufacturing processes, from initial design stage to time to market. Khatod offers innovative Optical Systems for any application in WAL, a wide range of high technical optics for SSL applications, a proven capability to develop custom optics and a huge choice of optoelectronic components.

Via Monfalcone, 41- 20092 Cinisello B. (Milan) – ITALY Tel: +39 02 660.136.95 Fax: +39 02 660.135.00

E-mail:[email protected]
