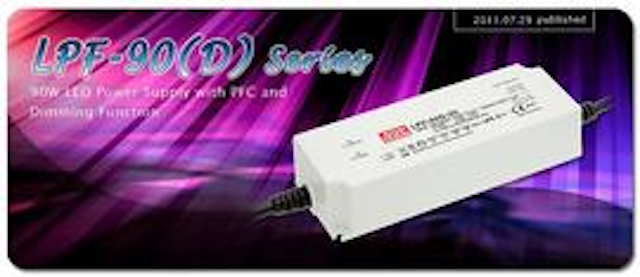

Mean Well 90W LED power supply with PFC and dimming

Content Dam Leds En Ugc 2011 07 Mean Well 90w Led Power Supply With Pfc And Dimming Leftcolumn Article Thumbnailimage File
32073 0 thumb Date Announced: 29 Jul 2011

After the launch of LPF-40(D)/60(D) series, MEAN WELL further extend higher wattage of 90W LED power supplies~ LPF-90(D) series, in order to fulfill the rapid growth of dimming operation in the LED lighting market. Built-in active PFC function, LPF-90 series are primary models with complete basic functions; and for LPF-90D series, they equip with additional “three-in-one dimming function” which offer system designers great flexibility for designing lighting fixtures by using 1~10VDC, PWM signal, or changing resistance to achieve brightness reduction and energy saving purpose.

LPF-90(D) series are fully potted by heat-conducted glue (IP67 structure) and enclosed by plastic case with 94V-0 fire prevention level, which allow internal shock absorption to withstand 5G vibration and provide the protection for internal electronic components against dust and moisture. In addition, they possess up to 91% of high efficiency and can work between -40 ~ +70℃ by only free air convection that makes the usage at harsh locations possible. Not only meet the harmonic current limitation per EN61000-3-2 Class C (≧ 60% of load), they also fulfill PF>0.9 if loading over 60% which complies with the requirements of typical lighting applications.

Meanwhile, these new models use double isolated cable-style input/output (SJTW 18AWGx2C/30cm and SVT 18AWGx2C/30cm) for flexible installations while LPF-90D equip with additional control wires (18AWGx2C) for the dimming operation. Other standard functions include Class II AC input (without FG) design and protection for short circuit, over voltage, overload, and over temperature. Comply with global certificates per UL8750, EN61347-1, EN61347-2-13, and EN55015 of lighting regulations, your safety can be greatly guaranteed. Suitable applications include outdoor/ indoor LED lighting, commercial lighting, wash-wall lighting, LED stage and theater lighting, and LED decorative lighting...etc.

Features:
1. Wide range input 90~305 VAC (meet 277VAC requirement in North America)
2.Built-in active PFC function, comply with EN61000-3-2 harmonic Class C (>60% of load)
3.Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance) for LPF-90D
4.Plastic case and potted by glue, comply with IP67
5.91% high efficiency
6.Cooling by free air convection
7.Class II design, without FG
8.Class 2 power unit / Pass LPS
9.Protections: Short circuit / Overload / Over voltage / Over temperature
10.Certificates: UL / CUL / TUV / CB / CE
11.Reasonable price, high reliability
12.Dimension(LxWxH): 161x 61x 36mm
13.3 years warranty
