Amnesia Ibiza upgraded with Madrix 3D LED lighting by LEDsControl

Content Dam Leds En Ugc 2011 10 Amnesia Ibiza Upgraded With Madrix 3d Led Lighting By Ledscontrol Leftcolumn Article Thumbnailimage File
Date Announced: 14 Oct 2011

(IDMA/Winter Music Conference) including 2011 and ranked #4 on DJ Magazine's Top 100 clubs in 2011, Amnesia is well known around the globe. The famous Ibiza venue now owns the biggest kinetic 3D LED installation in Europe with 76 DMX universes controlled by MADRIX.

8,848 RGB pixels are turning the night into day at Amnesia Ibiza thanks to Rebeca Sánchez, Miquel Clot and others. The striking setup was first to be seen at this year's opening, 11th of June.

The Opening Party 2011 was as diverse and colorful as the whole spectrum of Amnesia's club culture–it hosts Matinée, Cocoon, Cream Ibiza and others. The main concept of the lighting redesign is based on this special diversity.

The premise that something different happens every night was quickly established in the first meetings of designers, technicians, and decoration teams. That is why the whole design needed to be functional and spectacular at the same time.

LEDsCONTROL (MADRIX distributor for Spain) therefore planned a spacious, lightweight, and safe construction with large distances between fixtures. Hence, operators are able to adapt to the different, daily events with ease. Owing to the generous height of the club (11m), the installation is hidden from view if the LEDs are not lit up. But when the show starts, the impressive 2D/3D setup fascinates people within seconds.

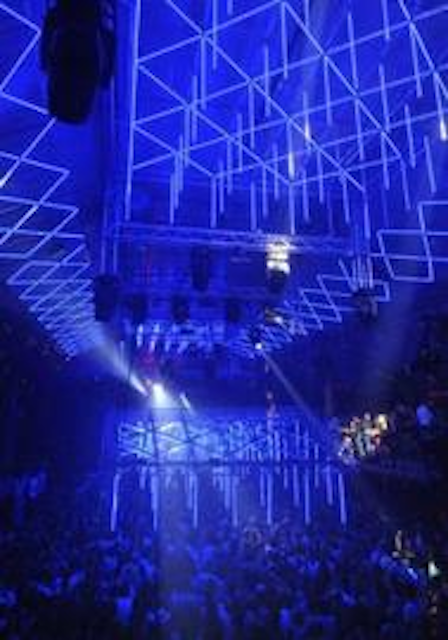

The fixtures in use were specially customized for Amnesia by LEDsCONTROL. 354 LED tubes, the majority, have a length of 1m and contain 32 SMD RGB LEDs. 2 LEDs each are controlled as one pixel via DMX. The fixtures are attached in zig-zag shapes of 45° and form a tram of 'diamonds' that covers the entire ceiling (incl. horizontal platforms and inclined roof).

On top of that, 1m vertical fixtures are positioned below the horizontal platforms at every intersection of horizontal tubes. 4 LEDs each are controlled as one pixel via DMX to offer 360° view. The astounding 3D effect is delivered by 217 tubes in total.

6 aluminum structures of 6x2m are used for the inclined roof. The horizontal platforms include 5 aluminum structures. Two of them stretch 5x5m wide, which is a static setup. Moreover, there are three kinetic structures of 3x5m. Supported by four chain hoist, the hoist controllers determine the variable elevation of those movable platforms and the 3D array.

The exclusive setup is controlled by MADRIX, the LED lighting control software. One MADRIX ultimate version controls 26,544 DMX channels with the help of 10 Luminex Ethernet-DMX8 MkII nodes.

Dozens of special effects were developed by LEDsCONTROL for this installation. These customized effects as well as custom-built and unique MADRIX Scripts, mostly used for 3D, provide the new club experience.
But the timing during operation is important. The combination of video walls, moving heads, LEDs and other lighting equipment requires the special attention of the lighting operator to create an atmospheric and vibrant light show.

A grandMA 2 console, which also controls MADRIX remotely via DMX-IN, and the MIDI controller AKAI APC-20 complete the state-of-the-art setup. More than 2km of cables were used, while the installation demands 10,000W of power.
