Wired for light: LED drivers with wire connections

Mar 16th, 2011
Content Dam Leds En Ugc 2011 03 Wired For Light Led Drivers With Wire Connections Leftcolumn Article Thumbnailimage File
Date Announced: 16 Mar 2011

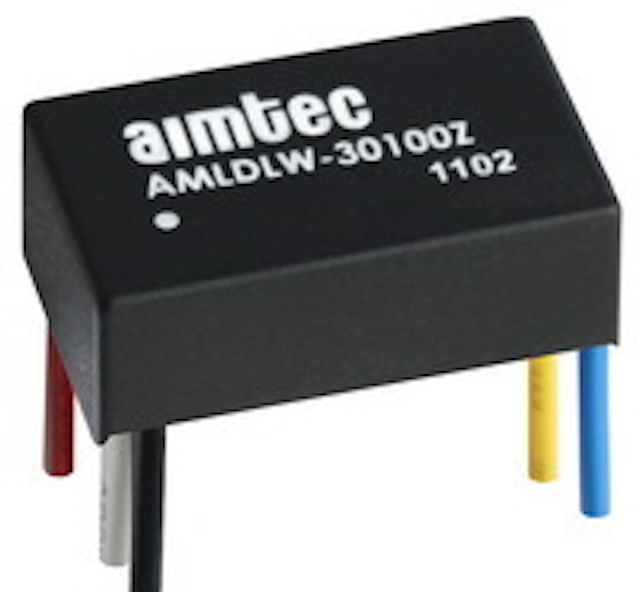

Aimtec has expanded its line of DC/DC constant current LED drivers with the AMLDLW-Z series featuring wire connections that can be attached directly to the LED string.

AMLDLW-Z accepts a wide (4:1) input voltage range of 7~30VDC, stepping down to an output voltage range of 2~28VDC and producing constant current outputs of either 350mA, 500mA, 700mA or 1000mA, based on the selected model. Maximum output power range accordingly from 9.8 watts to 28 watts, to support high-brightness LED applications.

Boasting efficiency rates of 95%, these feature rich LED drivers operate at temperature ranges of -40°C to +85°C at full load, for use in a multitude of indoor and outdoor applications. Value added features include open and short LED protection, PWM/digital and analog voltage dimming function and remove ON/OFF control function, making the AMLDLW-Z series an easy choice for luminary designers who seek a turnkey solution without the need of any external components.

RoHS compliant, the AMLDLW-Z series of LED drivers is competitively priced with samples available from stock and can be ordered through any of Aimtec’s franchised distributors.

Contact
Aimtec: 205 rue Joseph Carrier, Vaudreuil-Dorion, QC, J7V 5V5 Canada Tel:+1.514.620.2722

E-mail:sales@aimtec.com

Web Site:www.aimtec.com
