Chinahing completes Philippines project using 60W LED street lights

Content Dam Leds En Ugc 2013 05 Chinahing Completes Philippines Project Using 60w Led Street Lights Leftcolumn Article Thumbnailimage File
38465 0 thumb Date Announced: 27 May 2013

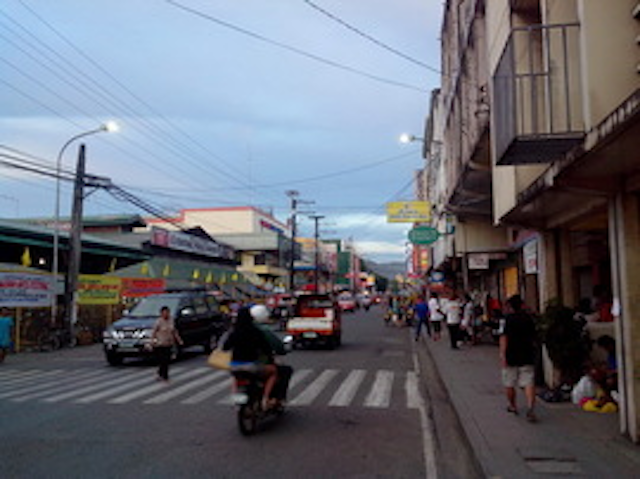

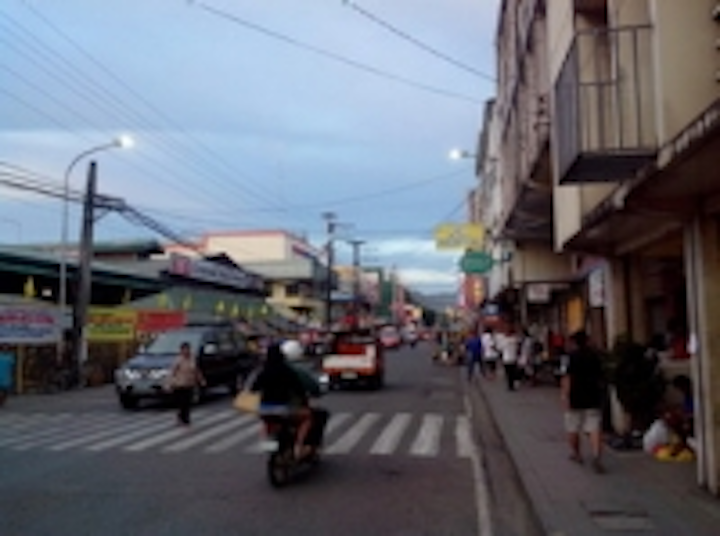

Good news shared that with customers’ team hard work in 2012, our customers in Philippines completed first LED street lights applied in the roadway lighting in Rizal Street, Dipolog city, Zamboanga del norte, Philippines.
This project is the first roadway lighting using LED street light in Philippines. The successful projects prove LED street lighting can adopted in all street lighting with mal-condition and strict requirement in longitudinal uniformity of luminance and the glare avoided. Customer and government are impressive and love the better lighting performance than conventional HPS and with over 60% energy saving.
The project choose our LED street light of B series 60W to replace 250WHPS in 9meters high and 30meters pole spacing, with lux level over 12lux average and over 0.6 for overall uniformity.
Our 60W street light choose highest worldwide brand America bridgelux chip and Meanwell driver with 5years warranty for the whole fitting. Specification is as below.
Code CH-LLD60-J-B
Model CH-LLD60-AC/220-G-J-Ⅲ-C-B02
Input voltage AC 170V~265V
Frequency range 50/60HZ
Power factor (PF) ≥0.95
Power efficiency >90%
LED power consumption 60W
Console power consumption 65W
LED luminous efficiency ≥100lm/w
LED luminous flux ≥5200LM
Iuminare efficiency(%) ≥90%
Color-rendering index(CRI) Ra>70
Junction temperture(Tj) <80°C
IP grade IP65
Working condition Temperature:-30°C ~50°C ; Humidity:10%~90%RH
Storage temperature 10°C ~60°C
Life-span >30000Hrs
Material Aluminum alloy
Package size(unit:cm) 79 (L) × 38 (W) × 24 (H)
Net weight 13.3Kg
Pole installing diameter ∮45mm~∮65mm
More information can refer to website www.chinahong.org. Welcome you to join us together for LED street lighting business with largest energy saving!
