Ismosys samples Sharp COB LED lighting array with tuneable colour output

Content Dam Leds En Ugc 2013 04 Ismosys Samples Sharp Cob Led Lighting Array With Tuneable Colour Output Leftcolumn Article Thumbnailimage File
38068 0 thumb Date Announced: 15 Apr 2013

- enables light output colour to be smoothly adjusted to optimise comfort, productivity and well being


Bicester UK, April 15th 2013: Ismosys, Sharp Microelectronics’ pan-European sales & marketing representative, has begun sampling the latest addition to the company’s innovative Zenigata family of chip-on-board (COB) LED lighting arrays. The Tiger Zenigata LED array is the first single point light source to feature ‘tuneable’ colour temperature output.

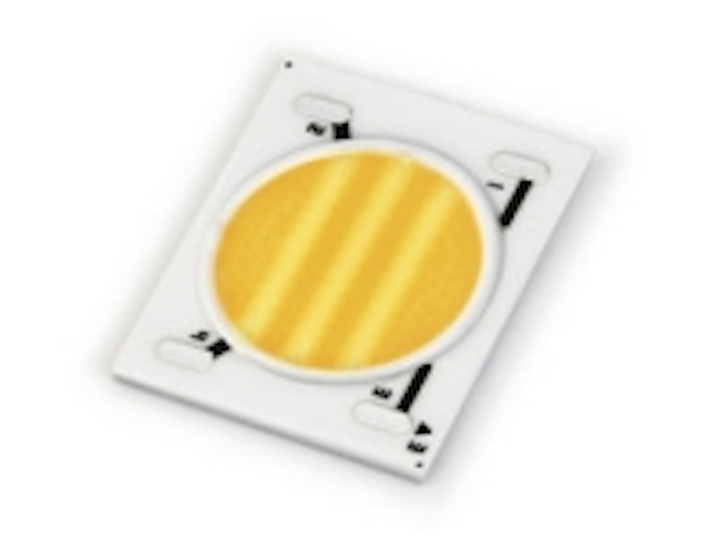

The Tiger Zenigata LED module features independently controllable intermeshed ‘stripes’ of yellow (cool) and orange (warm) phosphors (hence the ‘Tiger’ derivation). A total of 168 blue LED chips are coated by strips of different blends of red and green phosphors, which create the warm or cold white light components. A dual-channel LED driver is used to independently adjust the output of each LED ‘stripe’ and so changes the overall colour temperature output of the array.


According to Ismosys MD Nigel Watts, the colour temperature humans perceive as comfortable depends heavily on the time of day and the activity being undertaken: “Light output quality that can be smoothly adjusted as necessary throughout the day has been proven to optimise comfort, productivity and well being in any number of commercial, industrial and domestic applications”, Watts said.


The circuit for the 2700K ‘stripe’ is made up of 96 chips arranged in eight parallel strips of 12 LEDs. The 5700K ‘stripe’ is created from 72 chips in six parallel strips. Each ‘stripe’ needs a forward voltage of 37V at a maximum power supply of 700 mA. Any colour temperature between 2700K and 5700K can be realised and depending on the colour temperature chosen the luminous flux emitted ranges from 1,900 to 2,200 lm. The Tiger Zenigata achieves a maximum of 92 CRI for cold white and up to 94 CRI for warm white.


With a circular LES of just 17 mm in diameter, the Tiger Zenigata delivers the optical characteristics of a single-point light source, simplifying the design of lighting fixtures by eliminating the multiple shadow effect that can be a problem with multi-dot light sources. The 25W device is mechanically and optically compatible with other Mega Zenigata LED arrays (though with four contacts instead of two) making it easy for existing customers to adapt existing luminaire designs to offer colour-tuning capability.


Sharp Microelectronics’ Tiger Zenigata, part number GW6TGCBG40C, is available in both solder and mechanically connectable variants.

Contact
Brian Harding, CTM Manager, Spectrum Electronics Group Direct Office: ++44 1869 276103 Email: brian@spectrumeugroup.com

E-mail:sales@ismosys.com

Web Site:www.ismosys.com
