Osram Dragon infrared dome LED achieves 100m range for surveillance

Oct. 4, 2013

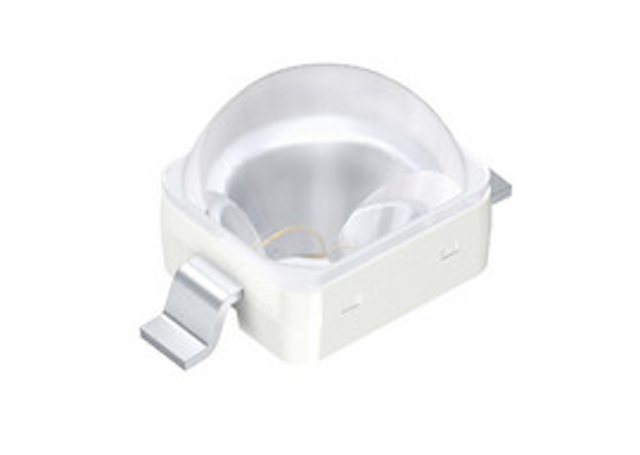

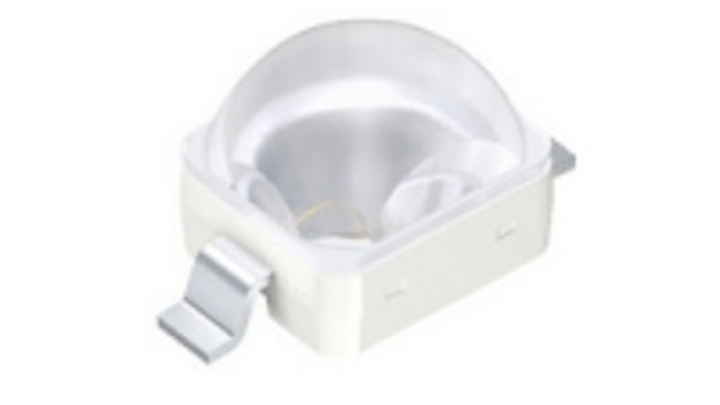

Date Announced: 04 Oct 2013 Sunnyvale, CAOsram Dragon Dome: Long distance security surveillanceNew infrared LED features compact system design and narrow beam angleSecurity surveillance over large distances is now possible thanks to the new infrared Dragon Dome LED from Osram Opto Semiconductors. The focused beam of this high-power Infrared LED (IRED) achieves a range of more than 100 meters. It has a compact design and does not need an external lens. With its wavelength of 850 nanometers (nm), this LED is ideal as a light source for security surveillance tasks such as Closed Circuit Television (CCTV).The Dragon Dome SFH 4783 is the first high-power infrared LED that emits its light within a narrow angle of +/-12°. From a current of 1 A, it achieves a total radiated power of 430 milliwatts (mW) and, therefore, a radiant intensity of 2.3 watts per steradian (W/sr). At this radiant intensity, the beam of light will have a usable range of more than 100 meters, depending on the sensitivity and field of view of the camera. Radiant intensity is measured in W/sr and indicates the light output within a solid angle segment. The high total radiated power of this IRED is made possible by the state-of-the-art thin-film technology, which enables the light to be extracted extremely efficiently from the chip.This high radiant intensity benefits all applications that need strong focused light to provide reliable illumination over large distances such as outdoor CCTV surveillance systems at border crossings and at airports. With a wavelength of 850 nm, the emitted light is well suited to camera sensors but is barely perceptible to the human eye, enabling very discreet surveillance. Integrated lens reduces time and costThe narrow light beam is produced by the deep metallic reflector and the lens of the Dragon Dome. Sevagun Nagappan, Product Marketing Manager for IR, explains: "The integrated lens translates into less time and expense for our customers because they do not need an external lens to focus the light. This not only reduces installation time and system costs in the relevant application, it also enables the overall design to be made extremely compact.” The Surface Mount Technology (SMT) package, which is compatible with other Osram Dragon designs, is suitable for reflow soldering processes, making handling easier and further reduces production costs. Technical data for Dragon Dome SFH 4783:Component size 11 x 6 x 5.7 mm3Wavelength 850 nmTotal radiated power 430 mW at 1 ARadiant intensity 2.3 W/sr at 1 ABeam angle ±12°ABOUT OSRAM OPTO SEMICONDUCTORSOSRAM GmbH of Munich, Germany is one of the two leading light manufacturers in the world. Its subsidiary, OSRAM Opto Semiconductors GmbH in Regensburg (Germany), offers its customers solutions based on semiconductor technology for lighting, sensor and visualization applications. Osram Opto Semiconductors has production sites in Regensburg (Germany) and Penang (Malaysia). Its headquarters for North America is in Sunnyvale (USA), and for Asia in Hong Kong. Osram Opto Semiconductors also has sales offices throughout the world.
