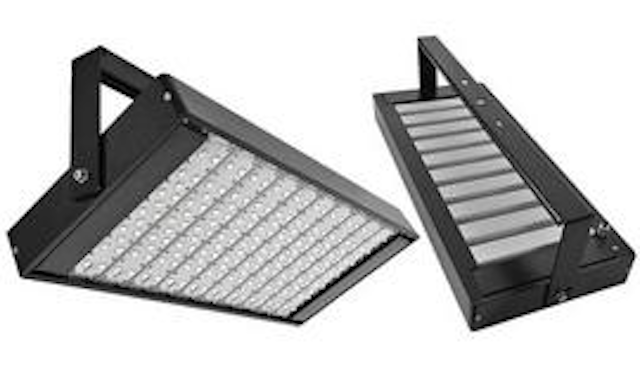

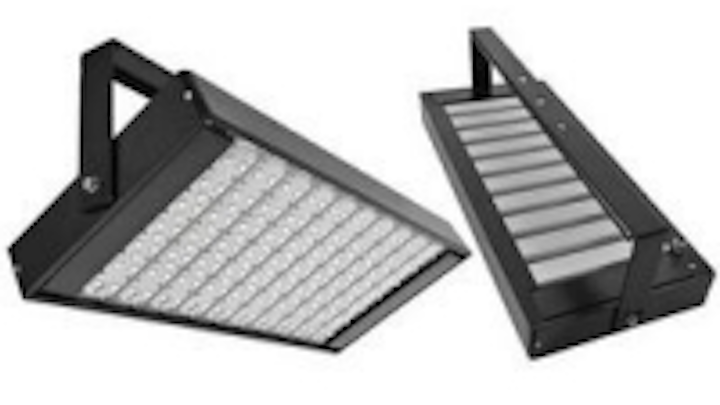

HTI releases modular 30~300W floodlight with Lumileds LED source

Content Dam Leds En Ugc 2013 12 Hti Releases Modular 30 300w Floodlight With Lumileds Led Source Leftcolumn Article Thumbnailimage File
39829 0 thumb Date Announced: 04 Dec 2013

Design, structure and thermal management
--Modular design, replaceable and upgradable LED light modules.
--Easy assembly, easy installation, easy repair or maintenance.
--Unique heat sink structure performs better heat dissipation and dust resistance.
--Built in driver, high completeness and integrity.
--Various housing color for option: Black, White, Gray, etc.

Electrical and photometrics
--Full range input voltage: 120-277Vac (Options: 220-240Vac, etc).
--Comply with safety and lighting standards in luminance, uniformity, glare control, etc.
--Popular medium symmetric light distribution curve.
--IES files are available for Dialux simulations.

Safety and reliability
--Top brand LED light source: Philips Lumileds.
--Best LED power supply: Philips Advance driver (UL, CSA, CE, ROHS compliant).
--5 years warranty, lifetime service.

Light distribution curve: 90°Medium Symmetric or 120°Large Symmetric.

Additional info:

Power: 30W, 60W, 90W, 120W, 150W, 180W, 210W, 240W, 270W, 300W
LED Light Source: Philips Lumileds
LED Power Supply: Philips Advance
Luminous Efficiency: ≥98Lm/W
Power Factor: ≥0.95
Operation Temp: -40℃ to 50℃
Color Temp: 5000K (Options: 6000K, 4000K, 3000K, etc)
Color Rendering Index: Ra>70 (Options: Ra>75, Ra>80, etc)
Application: LED Flood Lighting, Tunnel Lighting, Parking Area Lighting, etc

Jack Manager, Global Business Dept. Shenzhen Hitec Lighting Co., Ltd Mob: +86-153 0755 7255 T/F : +86-755 2314 8006 E-mail: Web Site:
