RECOM Lighting introduces a compact 7W constant current LED driver

Content Dam Leds En Ugc 2013 08 Recom Lighting Introduces A Compact 7w Constant Current Led Driver Leftcolumn Article Thumbnailimage File
39061 0 thumb Date Announced: 16 Aug 2013

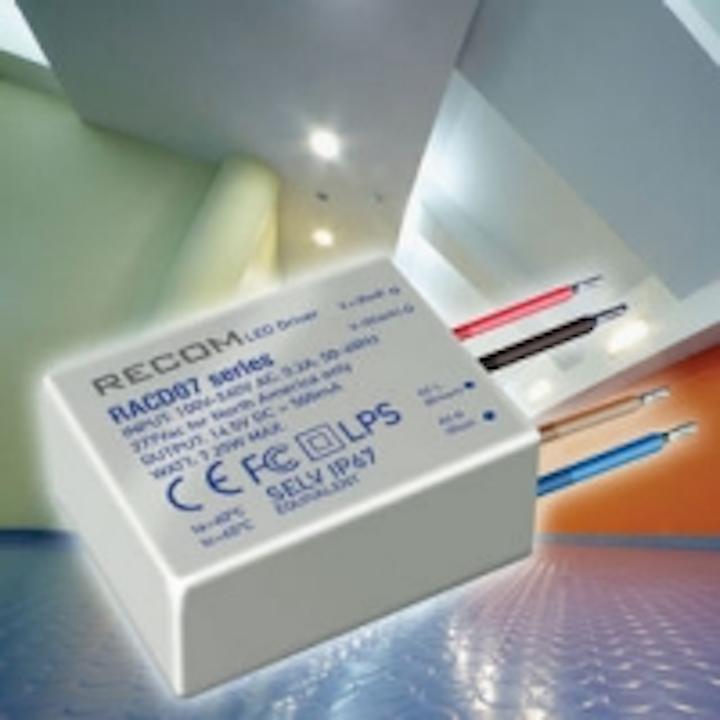

This low cost, constant current LED driver is both compact and versatile. With a voltage range of 90-295VAC, the RACD07 is suitable for worldwide use. The 7W modules are available with constant current outputs of 350mA, 500mA, or 700mA.
For applications with limited space the RACD07 simplifies installation with both input and output lead wires integrated into a single side including the mounting bracket. The driver is IP67 rated and can be used in dry or damp areas such as bathrooms or even outdoors. The driver features an input to output isolation voltage of 3750vAC for protection against short circuit and overload.

In addition to a 5 year warranty, the RACD07 is designed for a long lifetime (MTBF>200,000 hours). This series is certified to EN61347, EN61000-3-2, as well as EN5015 Class C, with UL certification pending.

Samples are now available and in stock from leading distributors. More details are available at www.recom-power.com or can be requested via email to admin@recom-power.com.




Contact
RECOM Power, Inc. 718-855-9710

E-mail:admin@recom-power.com
