Cotco’s TBL blue LEDs maximize extraction efficiency

Content Dam Leds En Ugc 2005 02 Cotco S Tbl Blue Leds Maximize Extraction Efficiency Leftcolumn Article Thumbnailimage File
8383 0 main Date Announced: 17 Feb 2005

The Cotco TBL Blue Series LEDs utilize the most recent advances in InGaN/SiC technology. The die process combines highly efficient InGaN materials with a Silicon Carbide (SiC) substrate in a geometrically enhanced Epi-down chip structure design to maximize light extraction efficiency.

The material also incorporates a current distribution layer that requires only a single wire bond for increased LED reliability. The vertically structured LED chips are approximately 115 microns in height and require a low forward voltage. This die improvement to Cotco’s High Brightness LED family greatly enhances the performance of a broad range of applications such as decorative lighting, full color video screens, mobile appliance lighting, and automotive illumination.

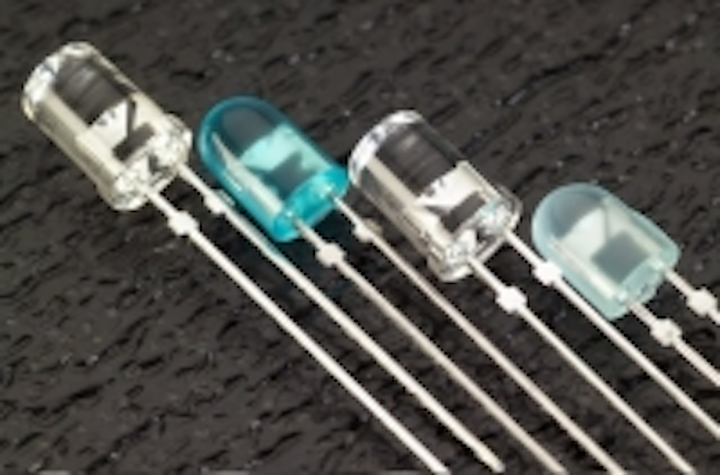

With luminous intensities of up to 12,000mcd, the TBL Blue LEDs from Cotco provide a luminous intensity that is significantly brighter than products currently available on the market today. TBL Blue LEDs are available in 5mm round and elliptical package styles with a variety of viewing angles to choose from. The TBL Blue series of LEDs represents Cotco’s next generation of solid-state LED products that succeed in delivering superior price and performance for high intensity LEDs.

TBL Blue Features

• 5mm and Elliptical Packages
• Available in 15º, 30º, 60ºx 35º and 110ºx50º viewing angles
• 465nm Blue
• InGaN/SiC Die Technology
• Single wire bond for increased reliability
• Luminous Intensities up to 12,000mcd
• High Efficiency
• High Reliability
• Exceptional Cost vs. Performance Ratio

Pricing & Availability

Pricing for the TBL blue LEDs from Cotco starts at $0.38 in 5K lots depending on package. Cotco TBL Series LEDs are only available through Marktech Optoelectronics.

Contact
Marktech Optoelectronics Latham, NY Tel. +1 (800) 984-5337 FAX: (518) 785-4725

E-mail:info@marktechopto.com

Web Site:http://www.marktechopto.com
