Pumping station in Cologne illuminated with LED modules

A cooperative project between Semperlux and Vossloh-Schwabe has yielded a lighting scheme that indicates that the pumping station is active when river levels are high.

Content Dam Leds En Articles 2008 09 Pumping Station In Cologne Illuminated With Led Modules Leftcolumn Article Thumbnailimage File
*** Case study written by Vossloh-Schwabe Optoelectronic ***

Vspumping1
Cologne has been graced with a new landmark: the high-water pumping station in the Bayenthal suburb of the city. The pumping station is already a sight to see during the day thanks to its architectural aesthetic, which includes an organically landscaped area that inconspicuously tucks the structure into the banks of the Rhine.

The control building, which was designed by the architectural company Kasper Kramer (BDA) to feature a contemporary metal-grid façade, was kept prominent as the visible face of the facility.

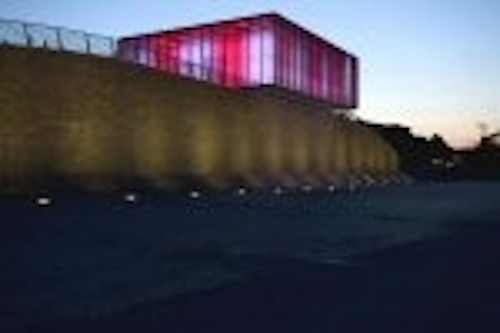

The pleasing daytime look is only topped by the ‘wow factor’ that nightfall brings. The breathtaking illuminations concept developed by the Semperlux lighting technology specialists in Berlin ensures the pumping station lights up in one of three colours depending on the water level of the Rhine.

A normal water mark is indicated by white light, rising water levels by amber and on reaching the high-water mark, the light turns red. The station then begins pumping off the discharge in the reinforced conduits. As a result, the citizens of Cologne are not only aware of when the pumping station is at work, but can also enjoy the eye-catching light spectacle as a thing of simple beauty.

Vspumping2
From its company seat in the German town of Kamp-Lintfort, Vossloh-Schwabe Optoelectronic provided the LED technology that made the artistic aspirations of this unique illumination system possible.

Project decision makers opted for the LED solution for several reasons. Next to low energy consumption, high light output and flexible light control thanks to RGB technology, LEDs guarantee an extremely long service life, practically no maintenance and with that very low life-cycle costs.

To suit this specific project, a system was developed that involved encapsulating standard VS Optoelectronic Flex modules fitted with SMD LEDs inside the aluminum sections of the metal-grid façade. The white, red, green and blue Flex line modules, each backed with self-adhesive tape, were first precisely trimmed to fit and then fixed within the inside face of the respective segment.

The LED modules were also specifically adapted to ensure even light-point spacing and uniform light density over the entire building. With the fitting order of the modules having been precisely calculated by the light engineers at Semperlux, actual installation was problem-free thanks to the highly flexible nature of the LED modules.

Finally, the standard Flex modules were permanently encapsulated within the metal sections using a transparent potting material to ensure protection against environmental factors. The indirect LED lighting system works by light hitting the walls of the building and then being reflected to appear as an evenly illuminated surface.

In response to the actual water level of the Rhine, a DALI unit triggers the respective light scene and a EUTRAC® DALI LightComposer®-REG module enables overall system control. As a result, both the citizens of Cologne and visitors to the city can enjoy these special illuminations night after night.

The extremely flexible standard Flex modules provided by VS Optoelectronic are fitted with humidity-protected SMD LEDs that are suitable for indoor and outdoor applications. Further Flex advantages include practically no heat generation during operation as well as small dimensions and self-adhesive backing, which make the line modules quick and easy to mount.

The products feature lead-free solder and thus comply with all environmental standards and requirements. Blessed with this impressive set of product benefits, VS Optoelectronic’s standard Flex modules are set to add the final sparkle to many more architectural highlights in the future.

Project Name: High-Water Pumping Station (HWPW), Schönhauser Straße, Cologne

City: Cologne, Germany

Principal: Cologne’s Municipal Wastewater and Drainage Company

Architect: Kaspar Kraemer Architekten, Project Manager: Mr. Lübben, Cologne

Light Planning/Light Design: Kaspar Kraemer Architekten / MBS / Semperlux AG / Vossloh-Schwabe Deutschland GmbH

Electrical Planning: MBS Elektro-Planung GmbH

Luminaire Installation: Elektro Emil Koch KG, Cologne
