Bentley selects ProMetric photometer to test LED instrument panels

Pro-Lite Technology has supplied a ProMetric CCD imaging photometer to Bentley Motors to assist in the development and testing of LED sources used in their vehicles.

Content Dam Leds En Articles 2008 09 Bentley Selects Prometric Photometer To Test Led Instrument Panels Leftcolumn Article Thumbnailimage File
Bentleypanel

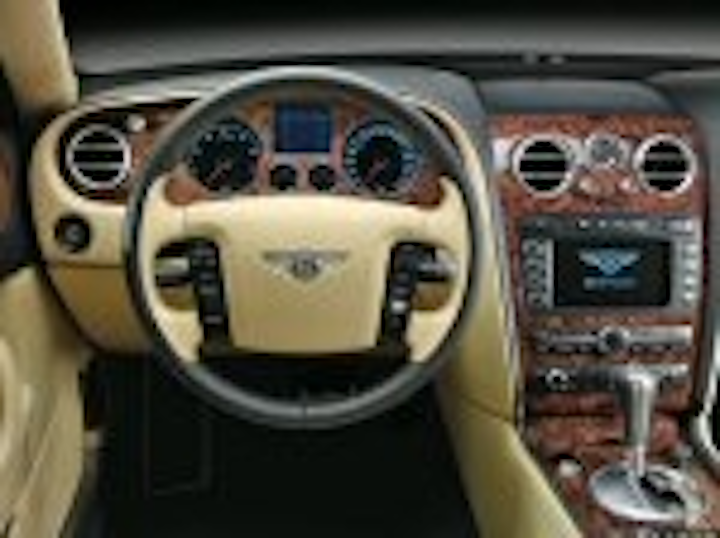

Bentley instrument panel
*** Case study written by Pro-Lite Technology LLP ***

Bentley Motors of Crewe, England, produces some of the finest motor cars in the world. The company specifies a very high attention to detail in the design and production of their vehicles, and this exacting approach extends to the selection of the photometric test equipment which they needed to help in the development of its cars’ interior and exterior lighting, instrument panels and infotainment displays.

Bentley has embraced the use of advanced solid-state lighting (SSL) based upon LEDs in its vehicles. These are used extensively for display backlighting, for subtle mood lighting in the cars’ cabins and for illuminating switches and panel indicators.

For Bentley, it was vital that the LEDs selected provide consistent illumination, create the required level of brightness (luminance) and emit exactly the desired colour. Visual comparison of the LEDs is extremely subjective and simply cannot quantify the performance of the light source or display. Traditional “spot” photometers – light meters which measure the brightness and colour of a display one (small) spot at a time – were one answer, but Bentley needed a more productive solution.

The solution selected was an Imaging Photometer – specifically a ProMetric™ PM-1400 CCD Imaging Photometer made by Seattle-based Radiant Imaging Inc and distributed in the UK by Pro-Lite Technology LLP of Cranfield, Bedfordshire.

ProMetric photometers are powerful, CCD-based light and colour measurement instruments that provide for vastly increased productivity compared with traditional “spot” photometers. Whereas a spot photometer can only measure the brightness and colour of one point on a display or light source at a time, a CCD-based ProMetric photometer can measure millions of points simultaneously.

Moreover, because the ProMetric camera views the whole light source at once, localised luminance and colour differences can be easily detected – artefacts that simple spot meters would probably miss.

The attributes of the ProMetric photometer which lead to Bentley choosing this camera over rival systems (or indeed an ordinary video CDD camera) were the PM-1400’s 16,000:1 photometric resolution, full frame CCD sensor (1536 x 1024 pixels), traceable calibration and precise match to the CIE tristimulus observer functions.

The PM-1400 provides a high sensitivity with wide dynamic range which means that it will detect colour and luminance differences that the human eye would see but which lesser cameras would miss. The full frame CCD gives accurate measurements of small features and individual LEDs whilst maintaining a wide field of view. The PM-1400’s tristimulus filter wheel more precisely mimics the colour response of the human eye, meaning that the ProMetric camera will report colour differences more accurately.

Overall, the PM-1400 provides colour and brightness measurements which Bentley can rely upon for accurate communication of LED and display performance within its supply chain and – ultimately – lead to enhanced display clarity and improved interior lighting in its cars.

Pro-Lite’s Robert Yeo worked closely with Bentley’s engineering team to determine the optimum camera configuration required for their application. Building upon his successful “Practical Light & Colour Measurement” training course hosted by the Photonics Cluster in Birmingham, Robert trained Bentley’s engineers in the science of light measurements and in particular how to address the challenges of measuring LEDs accurately.

As a result, the Bentley team were brought quickly up to speed on the operation and application of their purchase and have already started to realise a return from their investment in their ProMetric camera.
