Acuity hits 2000-lm output in LED-based PAR38 retrofit lamp

The Acculamp family now includes a 25W 2000-lm PAR38 lamp powered by a pair of COB LEDs, and also smaller SSL products in the MR16 family including a 400-lm lamp.

Content Dam Leds En Articles 2013 07 Acuity Hits 2000 Lm Output In Led Based Par38 Retrofit Lamp Leftcolumn Article Thumbnailimage File

Acuity Brands has expanded its Acculamp family of LED replacement lamps with 25W 2000-lm PAR38 lamps that are capable of replacing 150W halogen lamps. The company also added 400-lm MR16 lamps to the specification-grade solid-state lighting (SSL) line that is intended for the professional market.

The new PAR38 lamps fill out a PAR38 offering that also includes 20W 900-lm and 20W 1200-lm LED bulbs. Acuity offers all of the lamps in a choice of 2700K or 4000K CCTs, and 25° or 45° beam patterns. For now the 2000-lm lamps come in a CRI of 80, although the company has added higher CRI versions of the prior lamps, so the same progression could happen in the 2000-lm grouping.

Acuity has implied that the new lamps have established a new milestone for flux output in PAR38 lamps, although the company stopped short of saying the Acculamp was the first such product announced. But a quick web search didn't reveal other readily available products at that performance level.

"We listened to the marketplace and identified a significant demand for high-lumen-output LED lamps that would meet the requirements of demanding applications," said Seth Owen, Acuity Brands Lighting vice president for LED lamps and track lighting. "Through the combination of a high lumen package, crisp beam angles, and low glare, the 2000-lm PAR38 is our solution."

Acuity 070913

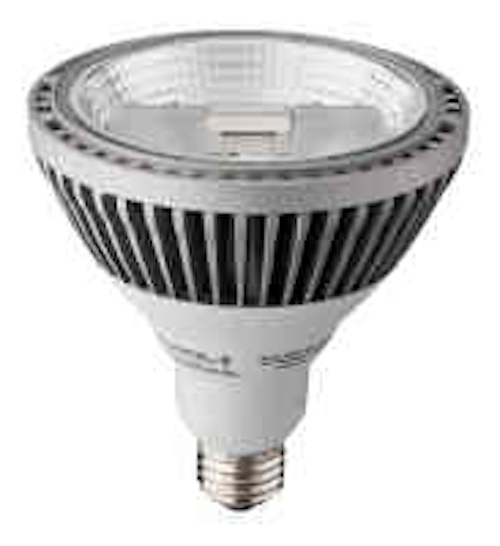

The lamp developers achieved the high output using a pair of chip-on-board (COB) LEDs. Essentially, the design splits the reflecting chamber in half with a thin light engine that is readily evident bisecting the chamber. The COB LEDs are mounted back to back with what Acuity calls a thermal conductive highway between them to transfer heat away from the LEDs. Each LED emits light outward to the reflector that forms the specified beam pattern.

The lamp architecture delivers system efficacy in the 80 lm/W range including the integral driver electronics. Acuity rates the lamps for 25,000 hours but said it projects an actual life of 50,000 hours. The lamps are backed by a five-year warranty.

In the same announcement, Acuity said it had added 8W 400-lm MR16 lamps. Those products are offered in a choice of 25° or 36° beam patterns, and 2700K or 4000K CCTs. Prior MR16 lamps in the family include 4W 140-lm, and 6W 240-lm lamps.

All of the new lamps have gone through the initial stages of Energy Star qualification. They are dimmable to 10% and Acuity expects the lamps to receive Energy Star certification.
