Focus on Luminaires: Next-Generation Luminaires Solid-State Lighting Design Competition 2015 (MAGAZINE)

At LightFair International in New York (May 3-7), the US Department of Energy (DOE), the Illuminating Engineering Society (IES), and the International Association of Lighting Designers (IALD) honored 28 commercial LED indoor and outdoor lighting products for excellence in the seventh annual Next Generation Luminaires (NGL) Solid-State Lighting (SSL) Design Competition.

Focus On Luminaires (MAGAZINE)
Focus On Luminaires (MAGAZINE)

At LightFair International in New York (May 3-7), the US Department of Energy (DOE), the Illuminating Engineering Society (IES), and the International Association of Lighting Designers (IALD) honored 28 commercial LED indoor and outdoor lighting products for excellence in the seventh annual Next Generation Luminaires (NGL) Solid-State Lighting (SSL) Design Competition. As CARRIE MEADOWS notes, the 2015 NGL competitions have taken a departure from previous years to combine indoor and outdoor SSL product announcements, as well as designating 12 of the selected entries as "Outstanding" in one or more evaluation categories instead of the judges assigning "Best in Class" honors as they have done before. The winners were segmented thus: 20 total recognized indoor luminaires, nine designated as Outstanding; and eight total recognized outdoor luminaires, three designated as Outstanding.

The panel of 18 judges, who hail from the architectural lighting community, noted that glare was still a lingering problem with LED luminaires in nearly all categories of the program. Scores were based on color, illuminance, light distribution, serviceability, value, dimming control, and appearance. Judges utilized specification sheets, LM-79 test reports, lumen maintenance projections, warranty statements, and marketing materials, most of which were submitted through LED Lighting Facts.

Outstanding

1507ledsf5 Finetune

FineTune System

by Finelite, Inc.

The FineTune indoor LED luminaires, available in a range of form factors, nabbed User Interface honors with their plug-and-play DMX controls that offer intuitive options such as presets for dimming and CCT levels. The luminaires achieve dimming from 10% to 100% and color tuning from 2700K to 6500K. Tested models delivered 76 lm/W and 83 lm/W, respectively.

fineliteled.com

Focus On Luminaires (MAGAZINE)Focus On Luminaires (MAGAZINE)

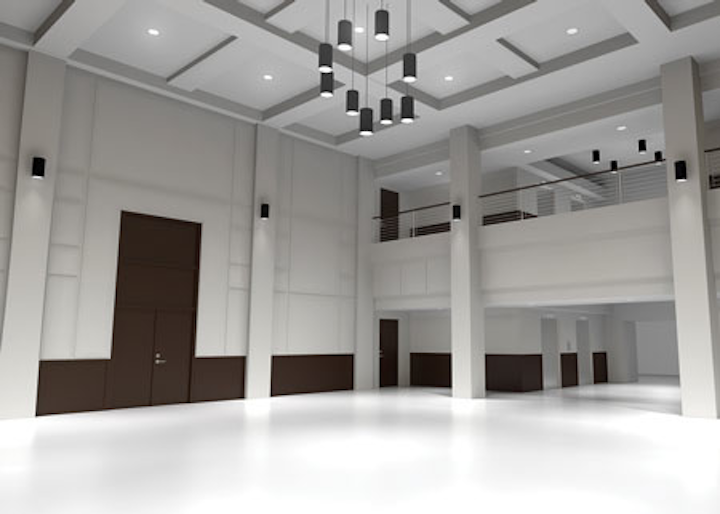

Gravity Cylinder

by Intense Lighting

The decorative LED pendant luminaire was a high achiever in Efficacy with 99 lm/W from 4211-lm output and 43W input power. The indoor luminaire was praised for its dimming performance; other features include field changeable optics, drivers, reflectors, and passive thermal management.

intenselighting.com

1507ledsf5 Lp Circle

LP Circle Pendant

by Louis Poulsen

Light distribution of the decorative LED pendant luminaire is softened by an acrylic diffuser, with a perforated cover allowing discreet illumination around the top. The ease of access and replacement of lighting components earned the 88-lm/W pendant a Serviceability distinction.

louispoulsen.com

1507ledsf5 Maxoutput

Max Output Warm Glow Dimming

by USAI Lighting

The smooth dimming and warm light output (3000K to 2200K CCT) of the color-tunable luminaire, described as incandescent-like, impressed the judges and earned it high marks in the Dimming category. The 75-lm/W fixture can serve as an incandescent replacement in applications with high ceilings including historic renovations as well as theaters, churches, and residences.

usailighting.com

1507ledsf5 Kju

Kju decorative pendant

by Selux Corporation

Smooth dimming without flicker and simple DALI programming are features that earned the Kju its Dimming honors. Multiple mounting options and uniform light distribution were also noted. The LED light engine enables the luminaire to deliver 995 lm of 3034K-CCT light at 10W for 96-lm/W efficacy.

selux.us

1507ledsf5 Olivio

Olivio LED Sistema 2

by Selux Corporation

The panel noted the LED pole-mounted pedestrian-scale luminaire's efficacy of 69 lm/W (3888 lm, 57W) could be improved, but it soared above in the Versatility category. The outdoor luminaire can be used in both small- and large-area installations, features aimable lighting heads, and can be mounted at heights up to 39 ft.

selux.us

1507ledsf5 Murro

Murro LED Wall Wash

by Amerlux

The indoor wall-washer received an Outstanding designation in the Efficacy evaluation category for its 106-lm/W illumination, and judges said it delivered good dimming performance with a pleasing aesthetic to the luminaire itself. The design helps installers use fewer luminaires while producing plenty of wall light, thus reducing energy consumption.

amerlux.com

1507ledsf5 Mywhite

M36 LED My White color-tuning luminaire

by Selux Corporation

Digitally controllable within a CCT range of 2700K to 6500K, My White gained a Serviceability nod for indoor linear lighting applications. Its design flexibility is further enhanced with 2135-lm, 82-CRI (2806K evaluated) light output at 35W (61-lm/W efficacy).

selux.us

1507ledsf5 Lseries Cylinder

Indy L-Series LED Cylinder

by Juno Lighting Group

The indoor cylinder luminaire achieved Dimming honors, and delivers 3037K-CCT and 80-CRI illumination with 64-lm/W efficacy achieved from 1410 lm at 22W. The availability of hyperbolic or parabolic reflectors and multiple mounting options allow the luminaire to serve in open-ceiling, decorative lighting applications.

junolightinggroup.com

1507ledsf5 Multiplicity

MultipliCITY LED Pathlight bollard

by Landscape Forms, Inc.

Judges praised the outdoor LED path light in the Form Factor category, citing the flexibility of light patterns and illuminance enabled through varying placement and number of LED arrays in the luminaires, which can be specified with Type 4 or Type 5 light distribution. The fixture's 3700K+, 961-lm output at nearly 16W allows it to reach 62-lm/W efficacy.

landscapeforms.com

Recognized

1507ledsf5a Cava Curve

Cava Curve linear LED

by LumenWerx

Concealed and indirect linear arrays are a key feature of the indoor pendant luminaire. It is capable of producing totally direct or segmented direct/indirect light distributions, delivering 3628 lm at 31W for 115- lm/W efficacy. CCT was greater than 3000K with CRI of 83.

lumenwerx.com

1507ledsf5 Ig Series

IG Series parking garage luminaires

by Cree

Cree developed the IG Series on its WaveMax platform that uses optical waveguides to produce low-glare illumination, resulting in Innovation honors. Two lumen packages are available for the outdoor luminaire; the evaluation model achieved 114-lm/W efficacy (from 4000 lm at 35W). The luminaire delivers 4000K light with CRI of 80.

cree.com

1507ledsf5 Beacon

Beacon Products Viper

by Hubbell Lighting

The outdoor area/roadway luminaire features integrated Beaconnect wireless control that operates autonomously after programming. The luminaire can be operated as a mesh system or, with battery backup and a real-time clock, independently. It produces 23,428 lm at 280W for 84-lm/W efficacy.

beaconproducts.com

1507ledsf5 Hpr2

HPR-LED 2x2

by Finelite, Inc.

The drop-down door enabling access to replaceable LED components helped the indoor ceiling troffer to earn a Serviceability distinction. The luminaire offers white color tuning, center door and optics options, and light output of 3342 lm at 44W input power (76-lm/W efficacy).

fineliteled.com

1507ledsf5 Linea

Linea 1.5 linear direct/indirect LED pendant

by Amerlux

The clean design and uplighting effect produced by the linear LED fixture was praised by the panel, which derives its 95-lm/W efficacy from 3560 lm at 37W. The Linea 1.5 can be combined with the Gruv1.5 fixture for indoor recessed and pendant applications and is available in multiple lengths. It delivers CCT around 3400K with CRI of about 82.

amerlux.com

1507ledsf5 Roadfocus

RoadFocus LED Cobra Head collector

by Philips Lumec

The cobrahead design of the collector-roadway-targeted luminaire has been enhanced with standalone and connected lighting controls as well as varying optical distributions. The roadway luminaire delivers 4079K-CCT, 74-CRI illumination with 115-lm/W efficacy (12,184-lm output at 106W). Judges were impressed with the glare control and combination of a smaller door and lighter weight for easier installation.

lumec.com

1507ledsf5 Fino

Fino Ceiling wall-washer

by Amerlux

The LED wall-washing luminaire has a shallow, ceiling-mount design for a minimalist appearance in indoor lighting applications. The luminaire's tested 1791-lm output at 24W delivers 76-lm/W efficacy. Specially designed optics deliver more than 630 lm/ft on vertical surfaces.

amerlux.com

1507ledsf5 Versaform

VersaForm recessed LED troffer

by Philips Ledalite

A detachable LED light engine enhances the serviceability of the 98-lm/W indoor troffer, which is available in multiple sizes, configurations, and mounting options. The evaluation unit delivered 3348K-CCT illumination with CRI of 82.

www.ledalite.com

1507ledsf5 Cylinder

Cylinder series

by USAI Lighting

The architectural look and multiple finish options, in addition to a range of sizes and mounting options, render the LED pendant a standout for decorative indoor lighting in any ceiling type. It also features 2-step color consistency and field-replaceable components. Efficacy of 90 lm/W was achieved with 3199-lm output at about 36W.

usailighting.com

1507ledsf5 Kick

Architectural Area Lighting KicK

by Hubbell Lighting

The outdoor pole-mounted luminaire is intended for pedestrian-scale lighting with a contemporary design that also achieves full light cutoff. It received good marks for serviceability and for its optical design. The luminaire delivers 4000K CCT with 75 CRI, and outputs 5993 lm at 74W (81 lm/W).

aal.net

1507ledsf5 Dle 48

DLE-48 Intelligent LED high-bay

by Digital Lumens

The industrial indoor luminaire, designed with field-adjustable light distribution, outputs 50,680 lm at 486W (104 lm/W). LightRules energy management software enables control and monitoring in applications such as lighting sports venues, warehouses and distribution centers, transportation, and others.

digitallumens.com

1507ledsf5 Fbx

High Bay FBX

by Philips Day-Brite

Engineered for versatility in high-ceiling applications, the industrial LED high bay is available with several lumen packages and optical distributions for indoor environments. Its 22,520-lm output at 197W achieves efficacy of 114 lm/W, with illumination of 4023K CCT and 84 CRI.

daybritelighting.com

1507ledsf5 Hp 2

HP-2 Indirect/Direct linear pendant

by Finelite, Inc.

The pendant luminaire is suited for a range of indoor applications with its standard and high-output lumen packages as well as a range of CCTs (3000K, 3500K, and 4000K). Judges noted that the luminaire dimmed well and was a candidate for use with photosensors and daylight harvesting.

finelite.com

1507ledsf5 Incito4

ICO 4 recessed downlight

by Gotham/Acuity Brands

The ICO 4 indoor downlight's digitally addressable driver enables smooth dimming with color consistency. The 4-in.-aperture LED fixture is capable of producing 3500K-CCT, 84-CRI illumination of up to 3000 lm. Efficacy is 67 lm/W (evaluated at 2914 lm and 43W).

gothamlighting.acuitybrands.com

1507ledsf5 Indy Downlight

Indy L-Series LED downlight

by Juno Lighting Group

L-Series indoor downlights offer apertures from 4-8 in. and a range of lumen outputs from 800-9000 lm. The tested models achieved efficacy of about 60 lm/W from 1432 lm at nearly 24W. The panel praised the luminaire's appearance, light distribution, and glare control for indoor lighting.

junolightinggroup.com

1507ledsf5 Nxt M

NXT-M collector

by LED Roadway Lighting

Field-serviceability options abound in the outdoor roadway luminaire, with LED engines, power supplies, and surge modules able to be replaced or upgraded without tools. It can also be upgraded in the field for optical distribution and more advanced LEDs. Output of 15,300-lm at 158W helps the roadway luminaire achieve 97-lm/W efficacy while producing light around 3000K CCT and 73 CRI.

ledroadwaylighting.com

1507ledsf5 Primo

Primo recessed troffer

by LumenWerx

Primo's square-based prism design and concentric micro-optic help the troffer achieve consistent light distribution and visual comfort for indoor lighting. Its recessed design was deemed aesthetically pleasing. The model tested at 96-lm/W efficacy delivers 2068-lm output at nearly 22W.

lumenwerx.com

1507ledsf5 Signal

Signal pole-mounted luminaire

by Landscape Forms, Inc.

With its leaf-shaped design, the outdoor pedestrian-scale Signal luminaire has a reduced weight and improved thermal management. It leverages multiple LED circuit boards, with sealed lenses, to achieve various aiming angles with lower energy consumption. Efficacy is 78 lm/W with 3479-lm output at about 45W.

landscapeforms.com
