ExCeL London Exhibition Centre chooses Dialight LED lighting to meet energy-efficiency targets

Around 200 high-bay LED fixtures have replaced high-pressure sodium lamps, providing improved light quality and significant energy savings.

Content Dam Leds En Articles Print Volume 8 Issue 3 Features Excel London Exhibition Centre Chooses Dialight Led Lighting To Meet Energy Efficiency Targets Leftcolumn Article Thumbnailimage File
ExCeL London is the UK’s largest exhibition and conference center. In January 2010, the ExCeL London management team started investigating how they could improve their lighting in order to achieve uniformity throughout the central boulevard of the exhibition and conference centre. At almost half a mile in length, this is the main thoroughfare and public space used by all events. The solution that ExCeL chose for this critical space not only improved the light quality, but also reduced operating and maintenance costs, improved the energy efficiency.

The lighting challenge

Chris Barnes, ExCeL’s Engineering and Energy Manager, explains how the need for improved lighting came about: “During the Phase Two expansion of ExCeL we used ETFE roofing above the new section of the central boulevard to allow us to harvest a lot of daylight. The Phase One section was still lit by 400W high-pressure sodium (HPS) lamps, which produce variable color-rendering as they age, so it looked dark by comparison.

Excelboulevard

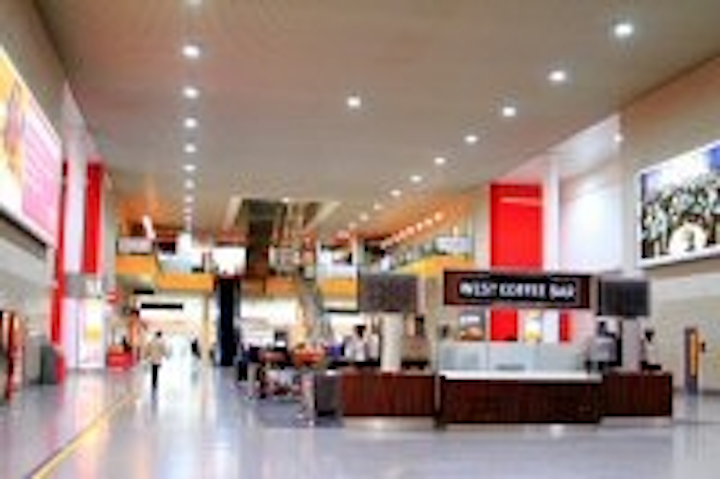

Central boulevard lit by LED High Bays from Dialight
“We specifically wanted to improve the lighting so that visitors could flow through the two areas without noticing a big difference in lighting conditions. Lighting is a key part of the user experience of this building and, as we couldn’t cut holes in the roof of the old section to let in daylight, it had to be an internal solution to matching the light quality.”

Additionally, the ExCeL management team wanted to meet energy-efficiency targets as part of their award-winning policy to continuously evolve and implement practices that deliver economic security, social and environmental benefits. A key part of this policy is to put a sustainable business strategy in place for lighting and other essential elements of its direct in-house operations.

How the challenge was overcome with LED lighting

ExCeL London agreed to a trial of eight DuroSite™ Series LED High Bay lights from LED lighting manufacturer Dialight. The 150W LED High Bays were used to replace 400W sodium lamps on a one-for-one basis.

The LED lights delivered more than double the lighting level, taking the measured illuminance from 100 lux to 220 lux. On the basis of this result, the installation was extended to a total of 194 LED High Bay lights throughout the central boulevard.

Exceldockside
ExCel London dock edge walkway
Chris Barnes had trialed other LED lights and said: “Dialight’s High Bay suits the purpose for the building; it looks nice, it’s aesthetically pleasing, it ticks all the boxes. For example, the boulevard is a public area and when there’s a power cut the HPS can take 2-3 minutes to come back on, whereas the LED is back on instantly. Our events managers noticed that and they like it, so now there’s a push to get more LEDs installed.”

He adds: “With LED what you see is what you get – it’s got a far better color spectrum than HPS – and that’s important for events like our big fashion shows.”

Of the installation process carried out by Elite Electrical, Barnes said: “Considering our ceiling height is 10 meters, it was very easy – four guys, six nights on two ‘magic carpets’. In fact the success of the boulevard prompted us to look at other areas like the dock-edge walkway, which was a big challenge as it relied on light from the building for illumination. We’ve now got 25 LED High Bays along the edge of the building, so the walkway is much safer and people are no longer worried about using it; not only that, but we can now turn off the building lights at night and that’s delivering 78% in energy savings.”

ExCeL London’s management team takes great pride in having one of the greenest and most energy efficient exhibition centers in the world. Adrian Corthine of Elite Electrical said: “By replacing the HPS lamps with Dialight LED High Bays they will potentially save close to 700 kWhr of energy per day, equating to over 250 MWhr of energy per year. On top of that the LED High Bays carry Dialight’s 5-year warranty which means they will also save greatly on maintenance.”

Excelcanopy
ExCeL London’s canopied entrance lit by LED High Bays
Looking ahead

The ExCeL London team has already expanded its retrofit of LEDs to include the canopied entrance to the conference centre where, for aesthetic reasons, each 450W sodium lamp was replaced by two 150W LED High Bays, one pointing up and the other down.

Further plans now include fitting Dialight LED High Bays throughout ExCeL’s 46 conference halls. For Chris Barnes, the main issue is light quality, while the reduced energy, maintenance needs and carbon emissions are all added bonuses to the lighting efficiency. As he says, “Our workshop’s immediate reaction to the LED was ‘Wow!’ I’d describe it in two words and say the High Bay is ‘selling itself’.”
