Osram Opto Semiconductors has announced the Synios P 2720 family of packaged LEDs that have a package architecture designed specifically for coupling to light guides, primarily for automotive exterior-lighting applications but also capable of serving in other consumer-electronic applications. Osram has also just announced new products in the infrared (IR) Oslon Black family with increased output for surveillance and inspection applications.

Synios P 2720

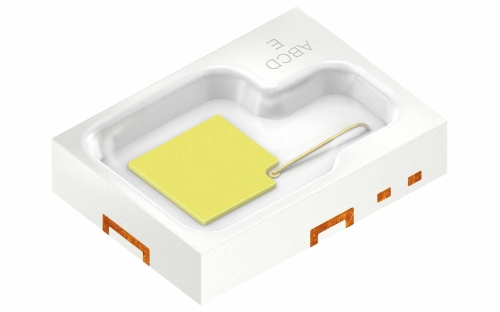

The new Synios P 2720 includes 15 different models of packaged LEDs that are all 2.7×2×0.6-mm in terms of package size and that all have the same solder-pad pattern. But Osram offers the LEDs in phosphor-converted white and yellow models, and in monochromatic yellow, red, and super red models. Moreover, the company offers different light levels achieved by varying the internal LED chip length, with 500-µm, 750-µm, and 1-mm emitters available.

Osram delivers new auto-targeted packaged LEDs, and IR LEDsOsram delivers new auto-targeted packaged LEDs, and IR LEDs

The packaged LEDs target automotive daytime running lights (DRLs), tail-light clusters, and position lights. Most high- and low-beam headlamps would require higher-output LEDs. For example, Osram offers the Oslon Black Flat and Ostar LED families for headlights.

Still, light-guide-based features are increasingly popular in both the headlight assembly and in rear-facing auto lighting. For example, Osram supplied the LED technology behind the headlamp unit that is standard on the 2015 Ford F-150 trucks. Light guides provide the wow factor in that implementation.

Osram says the 120° emission pattern and the compact size of the new Synios LEDs make them ideal for light-guide usage. Moreover, the packaged LEDs deliver 110-lm/W efficacy in white models and even 80-lm/W efficacy in red. The white versions range in output from 85–310 lm depending on chip size. The LEDs also perform well at elevated temperatures — an important factor in the tough automotive environment. Osram released a graph that shows only a 10% drop in flux output for the white LEDs as the junction temperature rises from 60°C to 120°C.

Development teams can begin designs based on the new LEDs now. "Nine of the 15 Synios versions are now available on the market," said Thomas Christl, LED marketing for automotive at Osram. "The remaining InGaAlP LEDs with 750-µm and 1-mm chip will follow in the summer. Along with the compact dimensions, various levels of brightness, and different colors, the variety of types opens up a high degree of flexibility when it comes to lamp design."

IR LEDs

Meanwhile, in the IR LED space, a technology that the company calls IREDs, Osram has new products for camera-based applications such as surveillance and industrial inspection. The IRED component can provide IR illuminations over a distance greater than 100m.

Ledsosramirnews042215

The company said the new SFH 4715AS and 4716AS LEDs deliver 70% greater output than standard IR LEDs. Given that the output is outside the human visible spectrum, the maximum output is characterized at 1.37W when driven at 1A, referring to radiometric power out.

The company also claimed the improved performance comes in part from the latest LED chips and an optimized package, although a new technology called Nanostack provides the largest gain. The company didn’t fully detail the Nanostack technology but said each chip has two emission centers.

"After only a brief interval we are now presenting the same component with further improved output," said Jörg Heerlein, marketing for infrared at Osram. "The new Oslon Black Stack generates more light and can therefore provide even better illumination over large distances than the previous versions."
