|Etched LED nanostructures|
LEDs typically emit only about two percent of the light in the desired direction: perpendicular to the diode surface. Far more light is internally reflected and stays within the LED, because of the extreme mismatch in refraction between air and the semiconductor.
The NIST nanostructured cavity boosts useful LED emission to about 41 percent, and may be cheaper and more effective for some applications than conventional post-processing LED shaping and packaging methods that attempt to redirect light.
The NIST team fabricated their own infrared LEDs consisting of gallium arsenide (GaAs) packed with quantum dots of assorted sizes made of indium gallium arsenide (InGaAs). Quantum dots are nanoscale semiconductor particles that efficiently emit light at a color determined by the exact size of the particle.

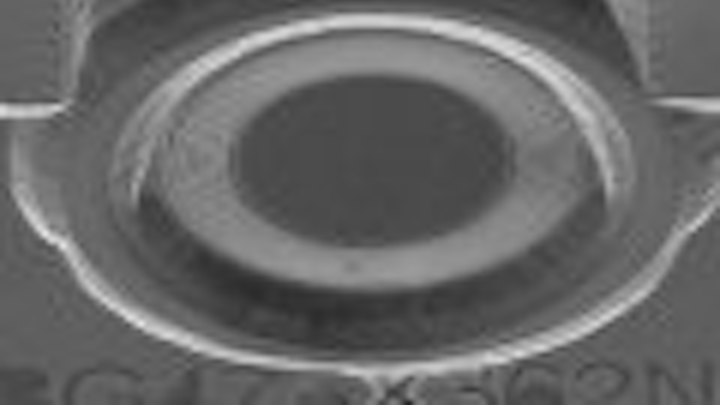

The LEDs were backed with an alumina mirror to reflect light towards the top surface. The periphery of each LED was turned into a cavity etched with circular grooves, in which the light reflects and interferes with itself in an optimal geometry.
The researchers experimented with different numbers and dimensions of grooves. The brightest output was attained with 10 grooves, each about 240 nanometers (nm) wide and 150 nm deep, and spaced 40 nm apart. The team spent several years developing the design principles and perfecting the manufacturing technique. The principles of the method are transferable to other LED materials and emission wavelengths, as well as other processing techniques, such as commercial photolithography, according to lead author Mark Su.
* M.Y. Su and R.P. Mirin Enhanced light extraction from circular Bragg grating coupled microcavities Applied Physics Letters July 17, 2006
