SMT assembly process requirements dictate choice of interconnects for LED-based PCBs (MAGAZINE)

Assembling LED-based PCBs for solid-state lighting applications requires careful choice of interconnect technology so that the products are compatible with automated SMT processes, explains Lukas Muth.

Content Dam Leds En Articles Print Volume 7 Issue 8 Features Smt Assembly Process Requirements Dictate Choice Of Interconnects For Led Based Pcbs Magazine Leftcolumn Article Thumbnailimage File
Assemblyinterconnectsimage

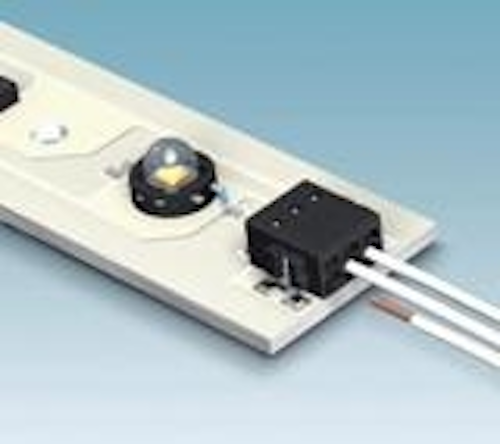

The increasing luminance of HB-LEDs is opening up more and more areas for solid-state lighting (SSL). But HB-LEDs generate a lot of heat, requiring a robust cooling scheme, and for this reason HB-LEDs are often mounted on metal-core printed circuit boards (PCBs) to improve cooling. The metal core provides efficient cooling, but is not compatible with conventional through-hole connectors that ensure fast and easy wiring of the LED boards. Design teams need an interconnect scheme that is compatible with automated surface-mount technology (SMT) PCB manufacturing and assembly processes.

Miniature push-in PCB terminal blocks can solve the interconnect problem. Design teams need to choose products that are capable of quick wiring, and that meet the mechanical and thermal requirements of SMT assembly lines. This article investigates the requirements placed on SMT-capable PCB terminal blocks.

++++++
