Orange Agilent LEDs enable auto-focus auxiliary LED flash

Agilent's orange LED replaces IR emitters in digital still cameras for auto-focusing in low-light conditions at distances up to 3m.

Content Dam Leds En Articles 2005 11 Orange Agilent Leds Enable Auto Focus Auxiliary Led Flash Leftcolumn Article Thumbnailimage File

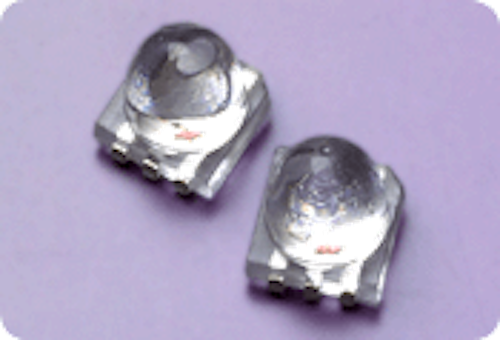

Agilent Technologies has introduced a high-brightness AlInGaP-based orange 612nm LED specifically designed to provide the illumination required to operate the automatic focus function of a digital still camera under low-light conditions. Most cameras use an infrared LED for this function, although some already use visible devices.

With a typical light output of 18 candela (at 20 mA), Agilent says that the ASMT-FJ10 is the brightest auto-focus LED on the market. The device operates over a range up to 3 meters, and has a footprint of 4.8x 4.8 mm with a height of 5.33 mm, which the company claims is the industry's smallest package footprint.

The auto-focus function uses light to detect the distance from the camera to the subject, and focuses the camera accordingly. In normal conditions, ambient (visible) light is used but in low-light conditions an additional light source is required.

In the past, cameras used IR-emitting LEDs for auto-focusing under low-light conditions because these were the only devices with sufficient light output. However, this means that a separate auto-focus sensor is required to detect the IR radiation.

The use of a visible-light emitter means that the same auto-focusing sensor is used under both low-light and ordinary conditions.

Since the orange 612nm LED provides visible illumination, the same device can also be used as a red-eye reduction lamp and serve as an indicator that the camera's self-timer is operating.

According to Patrick Trueson, Agilent's European Product Marketing Manager, the next generation of devices will be InGaN green LEDs with a minimum luminous intensity of 10 cd (at 20 mA). "Green light corresponds more closely with the sensitivity of the camera," he says.

The Agilent ASMT-FJ10 is a lead-free SMT dome lamp using an optimized untinted, non-diffused lens to provide a high luminous intensity with a narrow 8-degree radiation pattern (half-value angle). The molded package is compatible with lead-free IR (infrared) soldering processes.

When installed in a camera without additional collimating optics these LEDs meet the Class 1 eye-safety requirements of IEC/EN 60825-1 (2001) under all conditions of operation and single fault failure.
